Part A. Architecture
vAtlanta r00
1. General description
This Part of the specification provides an overview of the Bluetooth system architecture, communication topologies, and data transport features. The text in this Part of the specification is intended to provide an introduction to Bluetooth and does not cover every detail or every corner case. In case of discrepancy with other parts of this specification, the other text is to be relied on.
Bluetooth wireless technology is a short-range communications system intended to replace the cable(s) connecting portable and/or fixed electronic devices. The key features of Bluetooth wireless technology are robustness, low power consumption, and low cost. Many features of the specification are optional, allowing product differentiation.
There are two forms of Bluetooth wireless technology systems: Basic Rate (BR) and Low Energy (LE). Both systems include device discovery, connection establishment and connection mechanisms. The Basic Rate system includes an optional Enhanced Data Rate (EDR) extension. The Basic Rate system offers synchronous and asynchronous connections with data rates of 721.2 kb/s for Basic Rate and 2.1 Mb/s for Enhanced Data Rate. The LE system includes features designed to enable products that require lower current consumption, lower complexity and lower cost than BR/EDR. The LE system is also designed for use cases and applications with lower data rates and has lower duty cycles. The LE system includes an optional 2 Mb/s physical layer data rate and also offers isochronous data transfer in a connection-oriented and connectionless mechanism that uses the isochronous transports. The LE system also includes the optional modulation of tones used to convey information useful for distance estimation. Depending on the use case or application, one system including any optional parts may be more optimal than the other.
Devices implementing both systems can communicate with other devices implementing both systems as well as devices implementing either system. Some profiles and use cases will be supported by only one of the systems. Therefore, devices implementing both systems have the ability to support the most use cases.
The Bluetooth core system consists of a Host and one or more Controllers. A Host is a logical entity defined as all of the layers below the non-core profiles and above the Host Controller interface (HCI). A Controller is a logical entity defined as all of the layers below HCI. An implementation of the Host and Controller may contain the respective parts of the HCI.
An implementation of the Bluetooth Core has only one Controller which may be one of the following configurations:
a BR/EDR Controller including the Radio, Baseband, Link Manager and optionally HCI.
an LE Controller including the LE PHY, Link Layer and optionally HCI.
a combined BR/EDR Controller portion and LE Controller portion (as identified in the previous two bullets) into a single Controller.
1.1. Overview of BR/EDR operation
The Basic Rate / Enhanced Data Rate (BR/EDR) radio (physical layer or PHY) operates in the unlicensed ISM band at 2.4 GHz. The system employs a frequency hopping transceiver to combat interference and fading and provides many FHSS carriers. Basic Rate radio operation uses a shaped, binary frequency modulation to minimize transceiver complexity. The symbol rate is 1 megasymbol per second (Msym/s) supporting the bit rate of 1 megabit per second (Mb/s) or, with Enhanced Data Rate, a gross air bit rate of 2 Mb/s or 3 Mb/s. These modes are known as Basic Rate and Enhanced Data Rate respectively.

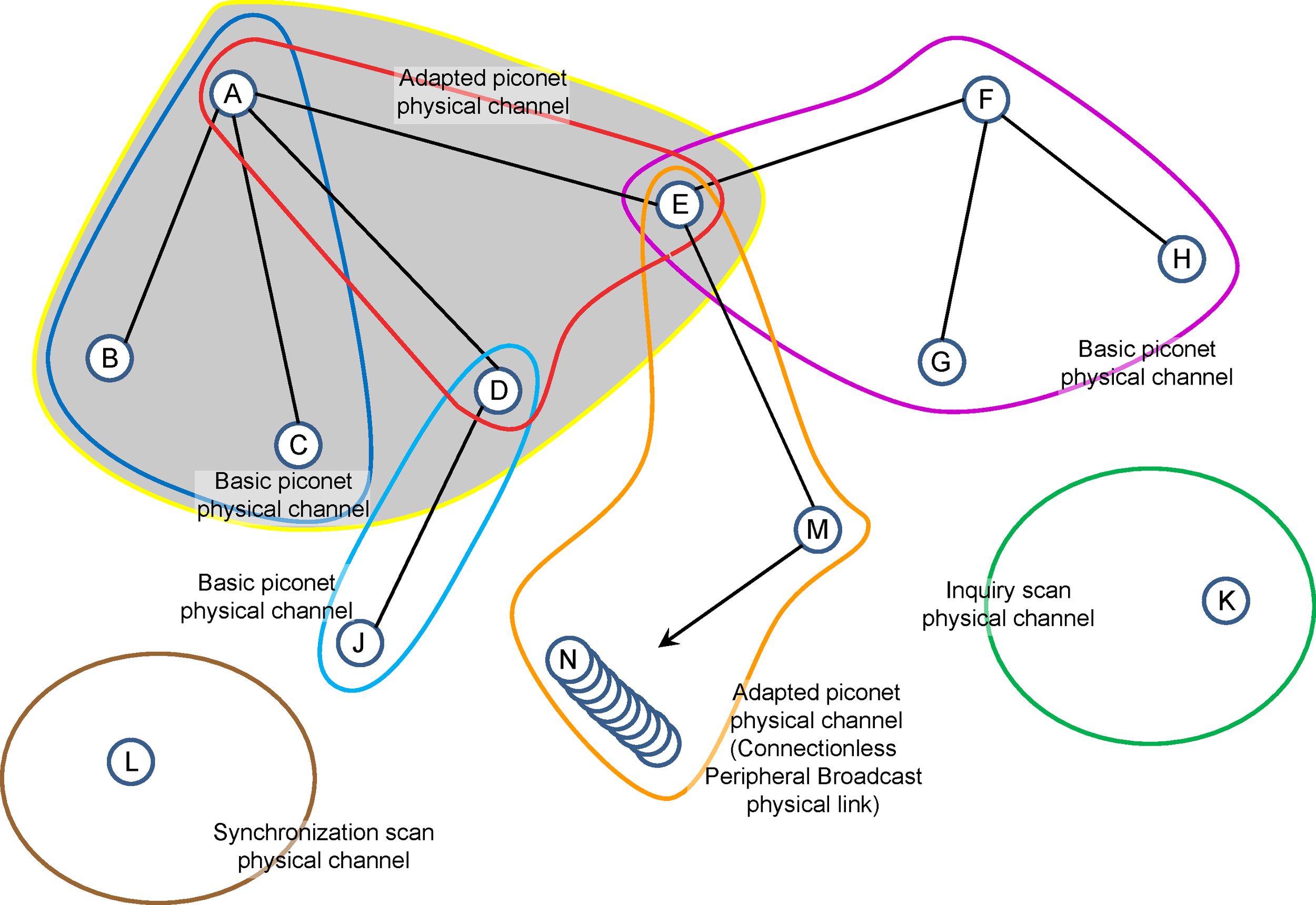

During typical operation a physical radio channel is shared by a group of devices that are synchronized to a common clock and frequency hopping pattern. One device provides the synchronization reference and is known as the Central. All other devices synchronized to a Central’s clock and frequency hopping pattern are known as Peripherals. A group of devices synchronized in this fashion form a piconet. This is the fundamental form of communication in the Bluetooth BR/EDR wireless technology.
Devices in a piconet use a specific frequency hopping pattern, which is algorithmically determined by certain fields in the Bluetooth address and clock of the Central. The basic hopping pattern is a pseudo-random ordering of the 79 frequencies, separated by 1 MHz, in the ISM band. The hopping pattern can be adapted – on a per-Peripheral basis – to exclude a portion of the frequencies that are used by interfering devices. The adaptive hopping technique improves Bluetooth co-existence with static (non-hopping) ISM systems when they are co-located.
The physical channel is sub-divided into time units known as slots. Data is transmitted between Bluetooth devices in packets that are positioned in these slots. When circumstances permit, a number of consecutive slots may be allocated to a single packet. Frequency hopping may take place between the transmission or reception of packets. Bluetooth technology provides the effect of full duplex transmission through the use of a Time-Division Duplex (TDD) scheme.

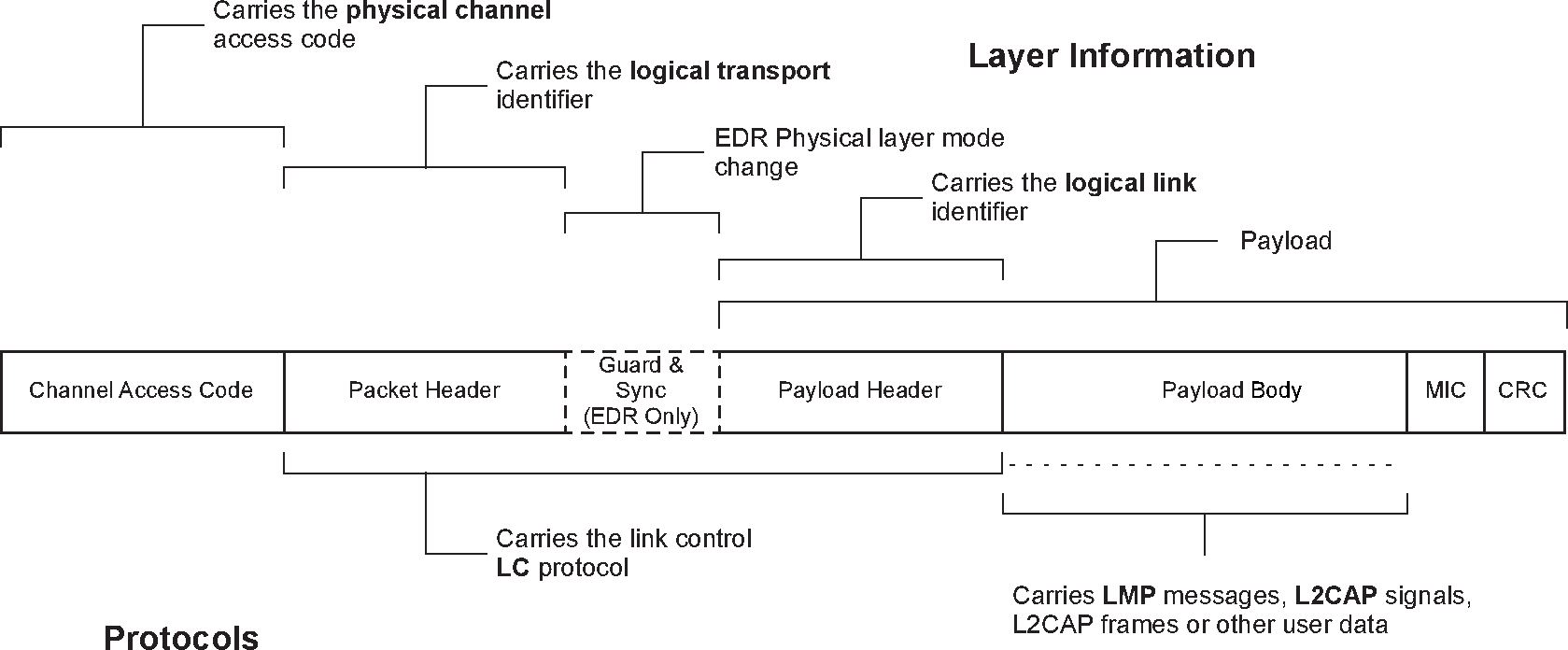

Above the physical channel there is a layering of links and channels and associated control protocols. The hierarchy of channels and links from the physical channel upwards is physical channel, physical link, logical transport, logical link and L2CAP channel. These are discussed in more detail in Section 3.3 to Section 3.6 but are introduced here to aid the understanding of the remainder of this section.
Typically within a physical channel, a physical link is formed between a Central and one or more Peripherals. Exceptions to this include Inquiry scan and Page scan physical channels, which have no associated physical link. The physical link provides bidirectional packet transport between the Central and Peripherals, except in the case of a Connectionless Peripheral Broadcast physical link. In that case, the physical link provides a unidirectional packet transport from the Central to a potentially unlimited number of Peripherals. Since a physical channel could include multiple Peripherals, there are restrictions on which devices may form a physical link. There is a physical link between each Peripheral and the Central. Physical links are not formed directly between the Peripherals in a piconet.
The physical link is used as a transport for one or more logical links that support unicast synchronous, asynchronous and isochronous traffic, and broadcast traffic. Traffic on logical links is multiplexed onto the physical link by occupying slots assigned by a scheduling function in the resource manager.
A control protocol for the baseband and physical layers is carried over logical links in addition to user data. This is the Link Manager protocol (LMP). Devices that are active in a piconet have a default asynchronous connection-oriented logical transport that is used to transport the LMP protocol signaling. For historical reasons this is known as the ACL logical transport. With the exception of Connectionless Peripheral Broadcast devices, the primary ACL logical transport is the one that is created whenever a device joins a piconet. Connectionless Peripheral Broadcast devices may join the piconet purely to listen to Connectionless Peripheral Broadcast packets. In that case, a Connectionless Peripheral Broadcast logical transport is created (also called a CPB logical transport) and no ACL logical transport is required. For all devices, additional logical transports may be created to transport synchronous data streams when required.
The Link Manager function uses LMP to control the operation of devices in the piconet and provide services to manage the lower architectural layers (radio and baseband). The LMP protocol is carried on the primary ACL and Active Peripheral Broadcast logical transports.
Above the baseband the L2CAP layer provides a channel-based abstraction to applications and services. It carries out segmentation and reassembly of application data and multiplexing and de-multiplexing of multiple channels over a shared logical link. L2CAP has a protocol control channel that is carried over the default ACL logical transport. Application data submitted to the L2CAP protocol may be carried on any logical link that supports the L2CAP protocol.
1.2. Overview of Bluetooth Low Energy operation
Like the BR/EDR radio, the LE radio operates in the unlicensed 2.4 GHz ISM band. The LE system employs a frequency hopping transceiver to combat interference and fading and provides many FHSS carriers. LE radio operation uses a shaped, binary frequency modulation, and optional amplitude shift keying modulation to minimize transceiver complexity. LE uses terminology that differs from BR/EDR to describe supported PHYs with regards to differences in modulation, coding that may be applied, and the resulting data rates. The mandatory symbol rate is 1 megasymbol per second (Msym/s), where 1 symbol represents 1 bit therefore supporting a bit rate of 1 megabit per second (Mb/s), which is referred to as the LE 1M PHY. The 1 Msym/s symbol rate may optionally support error correction coding, which is referred to as the LE Coded PHY. This may use either of two coding schemes: S=2, where 2 symbols represent 1 bit therefore supporting a bit rate of 500 kb/s, and S=8, where 8 symbols represent 1 bit therefore supporting a bit rate of 125 kb/s. An optional symbol rate of 2 Msym/s may be supported, with a bit rate of 2 Mb/s, which is referred to as the LE 2M PHY, when using a bandwidth-symbol time product (BT) of 0.5. An additional optional symbol rate at 2 Msym/s using a BT of 2.0 is also supported when used for the purpose of distance estimation, which is referred to as the LE 2M 2BT PHY. The 2 Msym/s symbol rate supports uncoded data only. LE 1M, LE 2M, and 2M 2BT are collectively referred to as the LE Uncoded PHYs. Section 3.2.2 describes this terminology in more detail.
The amplitude shift keying modulation scheme is employed to modulate tones for the purpose of gathering information for distance estimation. Section 3.2.3 describes amplitude shift keying in more detail.
LE employs two multiple access schemes: Frequency division multiple access (FDMA) and time division multiple access (TDMA). A TDMA-based polling scheme is used in which one device transmits a packet at a predetermined time and a corresponding device responds with a packet after a predetermined interval.
For the purposes of data transfer, 40 physical channels, separated by 2 MHz, are used in the FDMA scheme. Three are used as primary advertising channels and 37 are used as general-purpose channels (including as secondary advertising channels).
For the purpose of distance estimation, 72 physical channels, separated by 1 MHz, are used in the FDMA scheme.

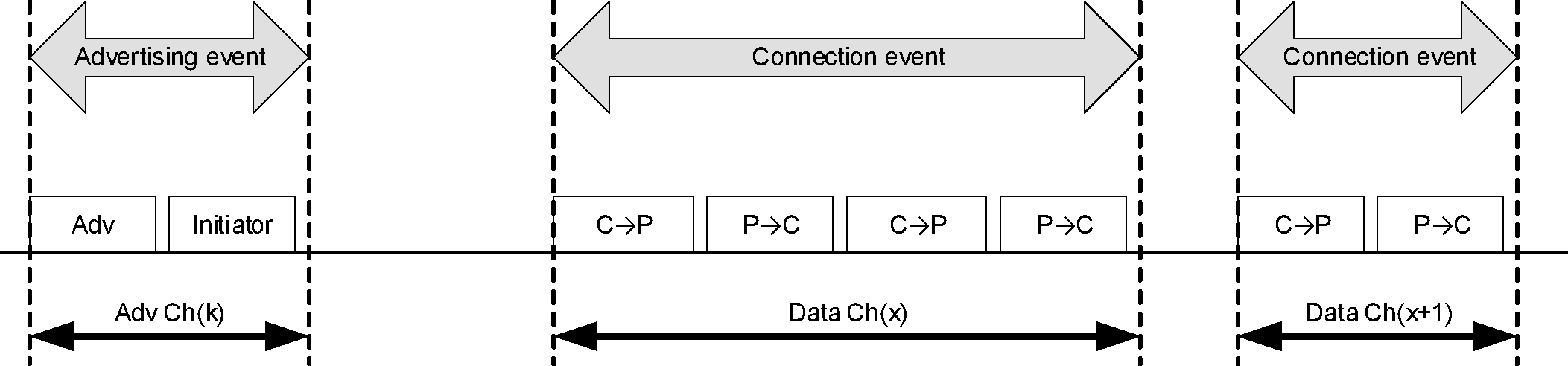

The physical channel is sub-divided into time units known as events. Data is transmitted between LE devices in packets that are positioned in these events. The following types of events exist: Advertising, Extended Advertising, Periodic Advertising, Connection, Isochronous events (which are partitioned into BIS, BIG, CIS, and CIG events), and Channel Sounding events.

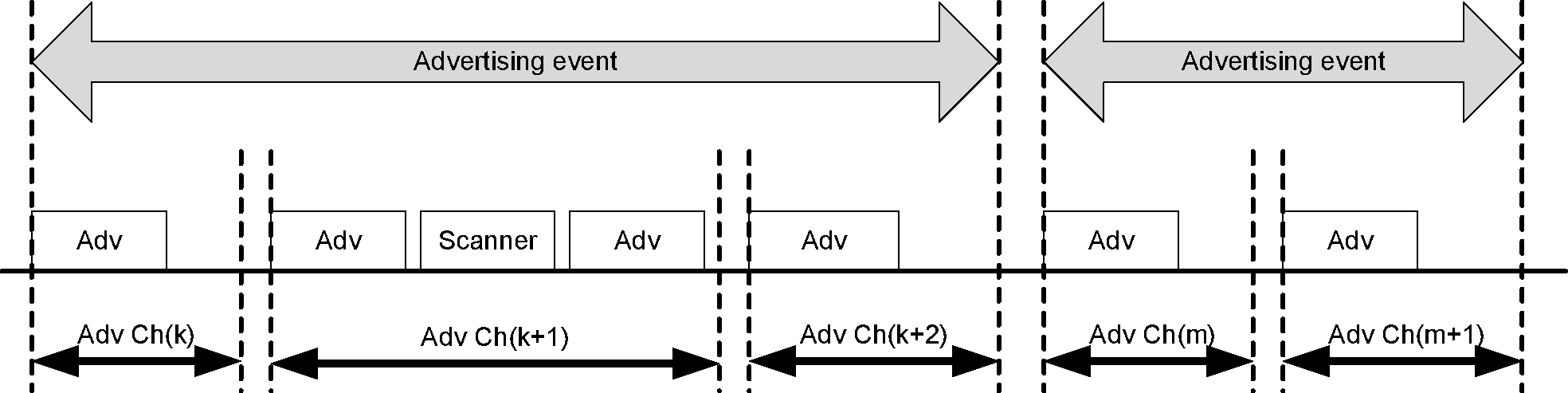

Devices that transmit advertising packets on the advertising PHY channels are referred to as advertisers. Devices that receive advertising packets on the advertising physical channels without the intention to connect to the advertising device are referred to as scanners. Transmissions on the advertising PHY channels occur in advertising events. At the start of each advertising event, the advertiser sends an advertising packet corresponding to the advertising event type. Depending on the type of advertising packet, the scanner may make a request to the advertiser on the same advertising PHY channel which may be followed by a response from the advertiser on the same advertising PHY channel. The advertising PHY channel changes on the next advertising packet sent by the advertiser in the same advertising event. The advertiser may end the advertising event at any time during the event. Each advertising packet in an advertising event uses a different advertising PHY channel. Each advertising event may use a different order for the advertising PHY channels.
LE devices may fulfill the entire communication in the case of unidirectional or broadcast communication between two or more devices using advertising events. LE devices may also use advertising events to establish bi-directional connections with another device and to establish asynchronous or isochronous periodic broadcasts. Asynchronous periodic broadcasts may allow the advertiser to receive responses from one or more devices. These additional activities make use of the general purpose channels in various ways.
Devices that need to form an ACL connection to another device listen for connectable advertising packets. Such devices are referred to as initiators. If the advertiser is using a connectable advertising event, an initiator may make a connection request using the same advertising PHY channel on which it received the connectable advertising packet. The advertising event is ended and connection events begin if the advertiser receives and accepts the request for a connection be initiated. Once a connection is established, the initiator becomes the Central in what is referred to as a piconet and the advertising device becomes the Peripheral. Connection events are used to send data packets between the Central and Peripherals. In connection events, channel hopping occurs at the start of each connection event. Within a connection event, the Central and Peripheral alternate sending data packets using the same data PHY channel. The Central initiates the beginning of each connection event and can end each connection event at any time.
Devices in a piconet use a specific frequency hopping pattern, which is algorithmically determined by a field contained in the connection request sent by an initiating device. The hopping pattern used on the LE data channel is a pseudo-random ordering of the 37 frequencies in the ISM band. The hopping pattern used in a Channel Sounding procedure is a pseudo-random ordering of 72 frequencies in the ISM band. The hopping pattern can be adapted to exclude a portion of the frequencies that are used by interfering devices. The adaptive hopping technique improves Bluetooth co-existence with static (non-hopping) ISM systems when these systems are co-located and have access to information about the local radio environment. A Peripheral can classify frequencies as good and bad and provide that information to the Central. The Central can take this information into consideration while adapting the hopping pattern.
Using an ACL connection, a Central can establish one or more isochronous connections that use the isochronous physical channel. An isochronous connection is used to transfer isochronous data between the Central and a Peripheral by using a logical transport, which is referred to as a Connected Isochronous Stream (CIS). A CIS consists of CIS events that occur at regular intervals (designated ISO_Interval). Every CIS event consists of one or more subevents. In each subevent, the Central transmits once and the Peripheral responds. If the Central and Peripheral have completed transferring the scheduled isochronous data in a CIS event, all remaining subevents in that event will have no radio transmissions and the event is closed. Each subevent uses a PHY channel which is determined by using the channel selection algorithm. The PHY channel that is used for a subevent is marked as ISO Ch(eventcount, subeventcount), as shown in Figure 1.4.
A device can use an isochronous physical channel to broadcast isochronous data by using isochronous connectionless logical transports. An isochronous connectionless logical transport is referred to as a Broadcast Isochronous Stream (BIS). A BIS consists of BIS events that occur at regular intervals (designated ISO_Interval). Every BIS event consists of one or more subevents. In every subevent, a broadcasting device transmits an isochronous data packet. Each subevent uses a PHY channel that is determined using the channel selection algorithm.

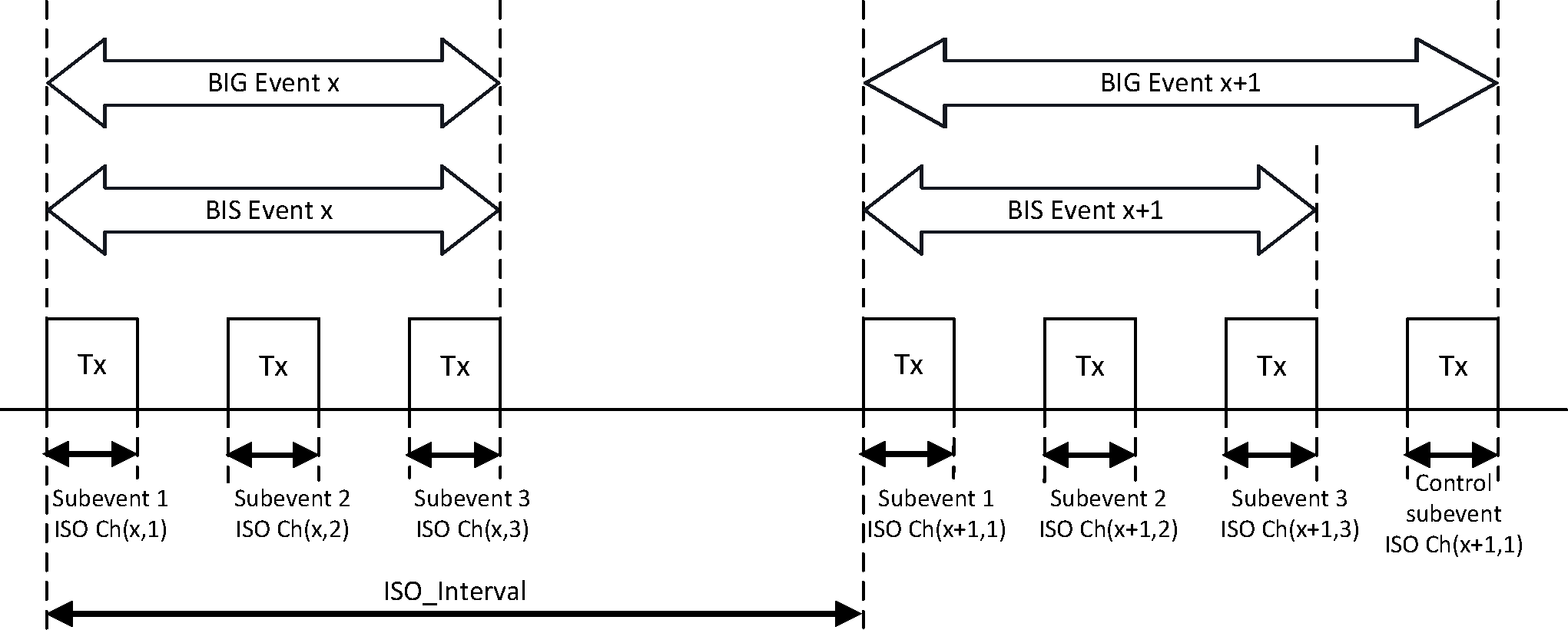

A device can transmit several BISes with synchronized timing; this is referred to as a Broadcast Isochronous Group (BIG). The various BIS events together form a BIG event. The device can also use the isochronous physical channel to broadcast control information in a Control subevent, which is transmitted at the end of all subevents for a BIG, as shown in Figure 1.5.
A device that transmits BIG events also transmits periodic advertisement events that contain synchronization information of the BIG. A device that is scanning can synchronize to those periodic advertising events and receive the synchronization information. Using this synchronization information, the device can synchronize to one or more BISes in the BIG and receive the isochronous data. Figure 1.5 shows two BIG events: one with and one without a Control subevent. Each subevent uses a PHY channel marked as ISO Ch(eventcount, subeventcount), as shown in Figure 1.5.
Devices can use the LE Channel Sounding physical link to exchange information that can later be used for distance estimation calculations. A Channel Sounding procedure (and hence, the first Channel Sounding event within that procedure) is started at an offset from an ACL connection event anchor point. A Channel Sounding procedure exists only for a limited duration, and consists of Channel Sounding events, subevents, and steps. Channel Sounding events may contain one or more subevents. Channel Sounding subevents contain two or more Channel Sounding steps. Channel Sounding steps contain bilateral exchanges between the two Channel Sounding peers known as the initiator and reflector. The Channel Sounding initiator transmits first in each step, followed by one or more transmissions from the Channel Sounding reflector. These transmissions may be a packet-based GFSK-modulated exchange or a tone-based, amplitude shift keying modulated exchange, or both.

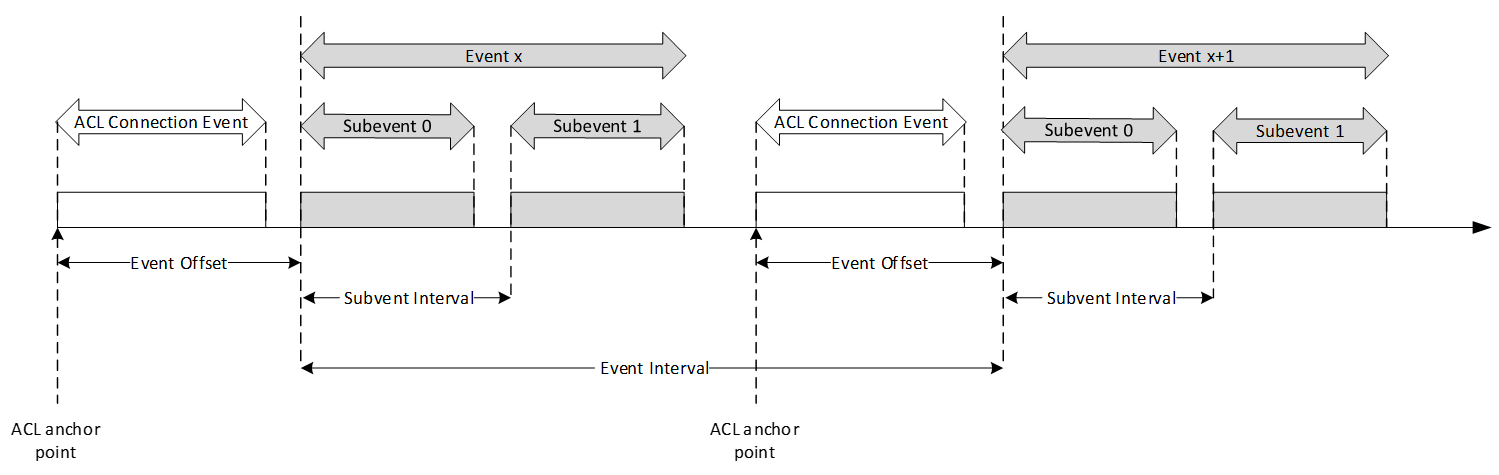

The general structure of Channel Sounding events and subevents is shown in Figure 1.6.

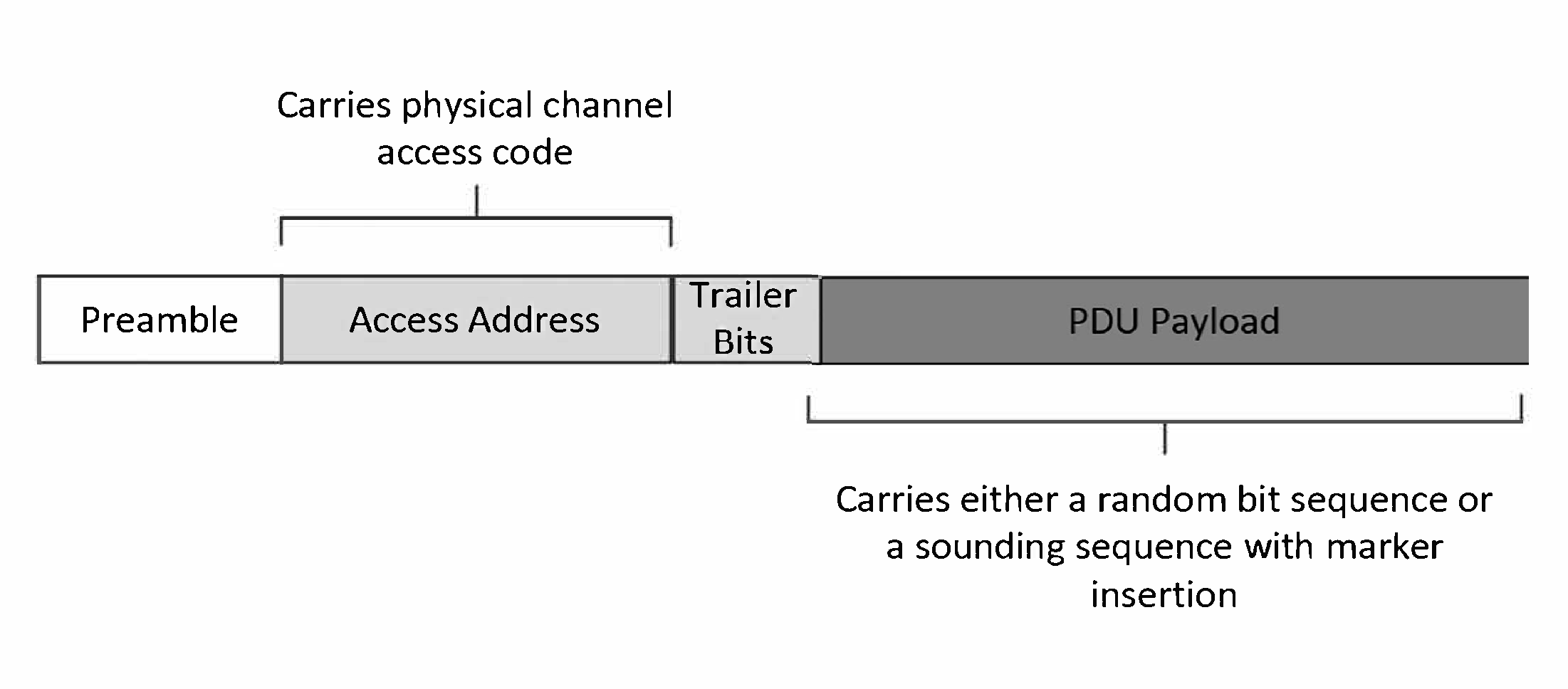

Each exchange within a Channel Sounding step contains information that can be measured. These measurements can be further processed to produce a distance estimate. The step content is discussed in more detail in [Vol 6] Part H, Section 4.3. These exchanges also carry security-related information that may assist in the detection of an external attacker who is attempting to indirectly manipulate the measured results, which could in turn affect the distance estimate. The Channel Sounding step exchanges use a PHY channel that is determined using a channel selection algorithm. For Channel Sounding, this channel selection algorithm, as well as other security-related information, is seeded using a Deterministic Random Bit Generator (DRBG). The security key material for this DRBG is known only by the respective initiator and reflector devices.

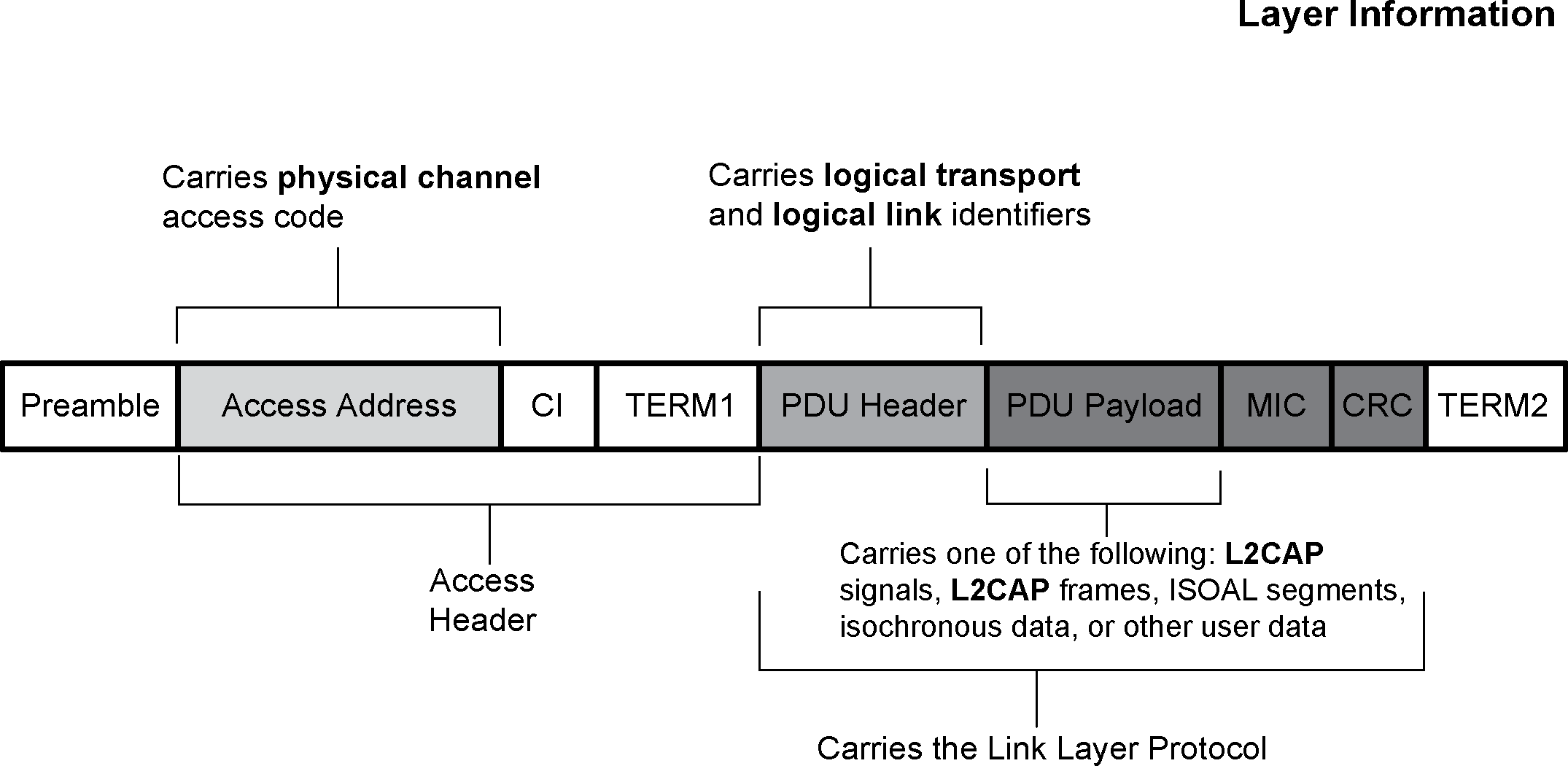

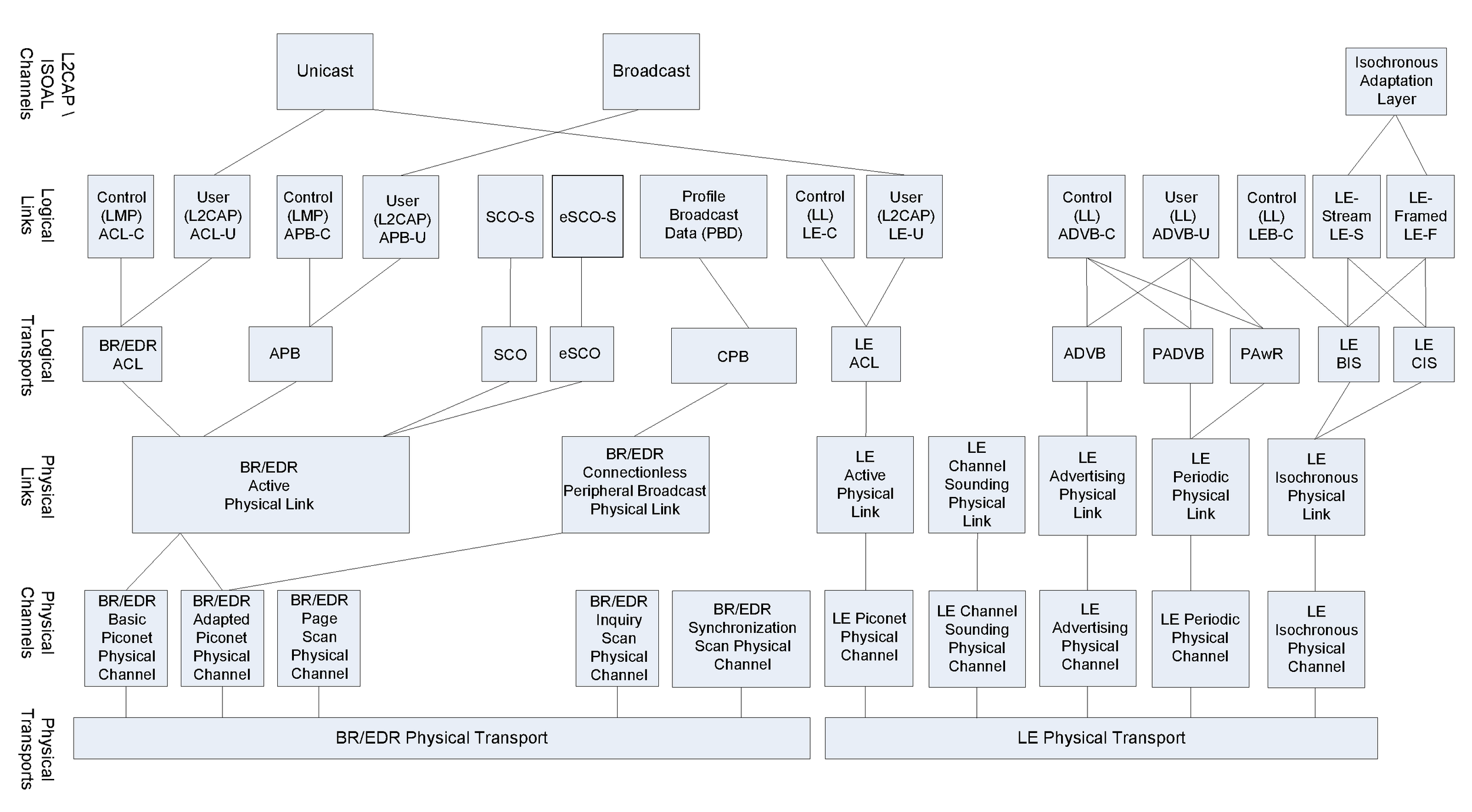

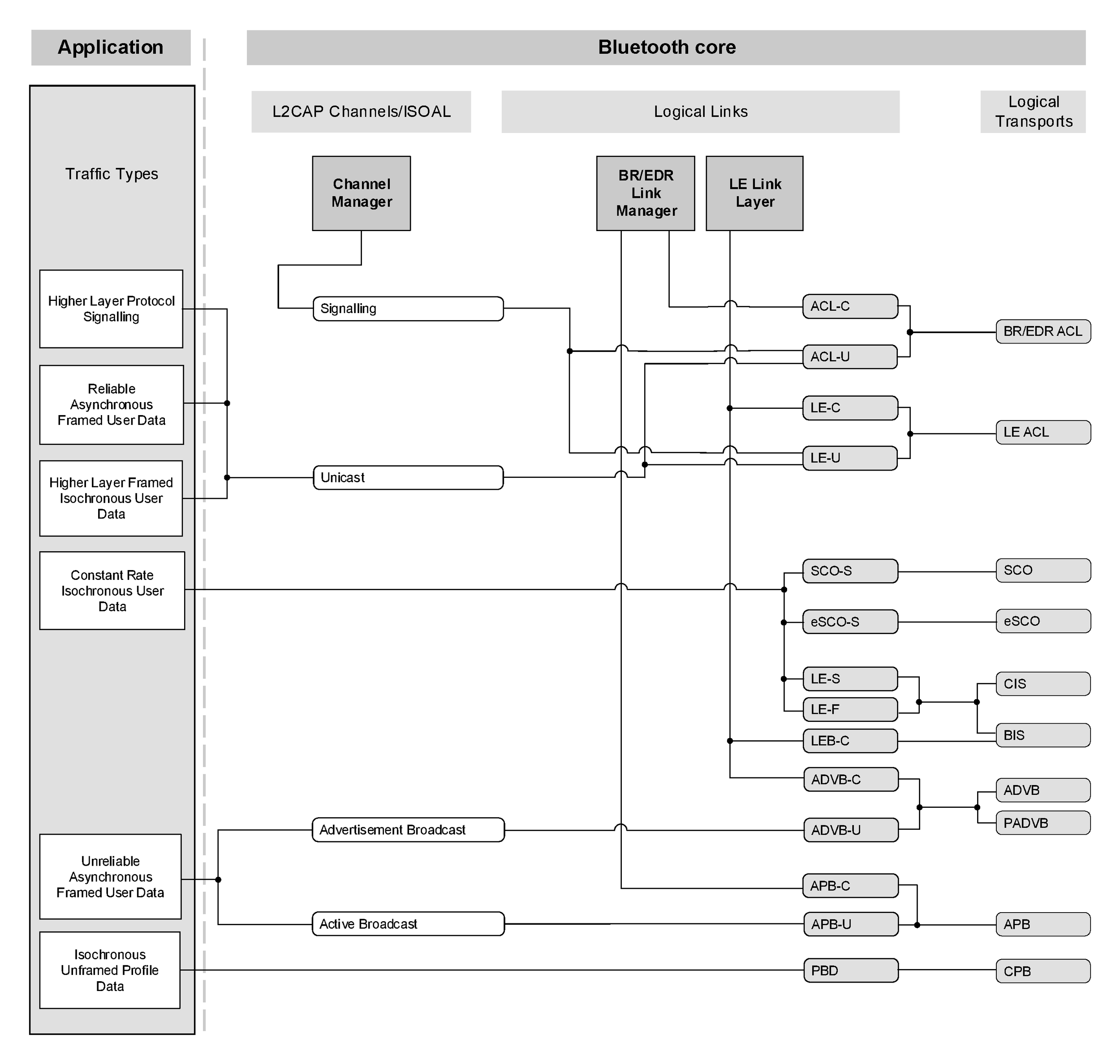

Above the physical channel there are concepts of links, channels and associated control protocols. The hierarchy is physical channel, physical link, logical transport, logical link, and L2CAP channel. These are discussed in more detail in Section 3.3 to Section 3.6 but are introduced here to aid the understanding of the remainder of this section.
Within a physical channel, a physical link is formed between devices. The active physical link provides bidirectional packet transport between the Central and Peripherals. Centrals may have physical links to more than one Peripheral at a time and Peripherals may have physical links to more than one Central at a time. A device may be Central and Peripheral in different piconets at the same time. Role changes between a Central and Peripheral are not supported. The advertising and periodic physical links provide a unidirectional packet transport from the advertiser to a potentially unlimited number of scanners or initiators.

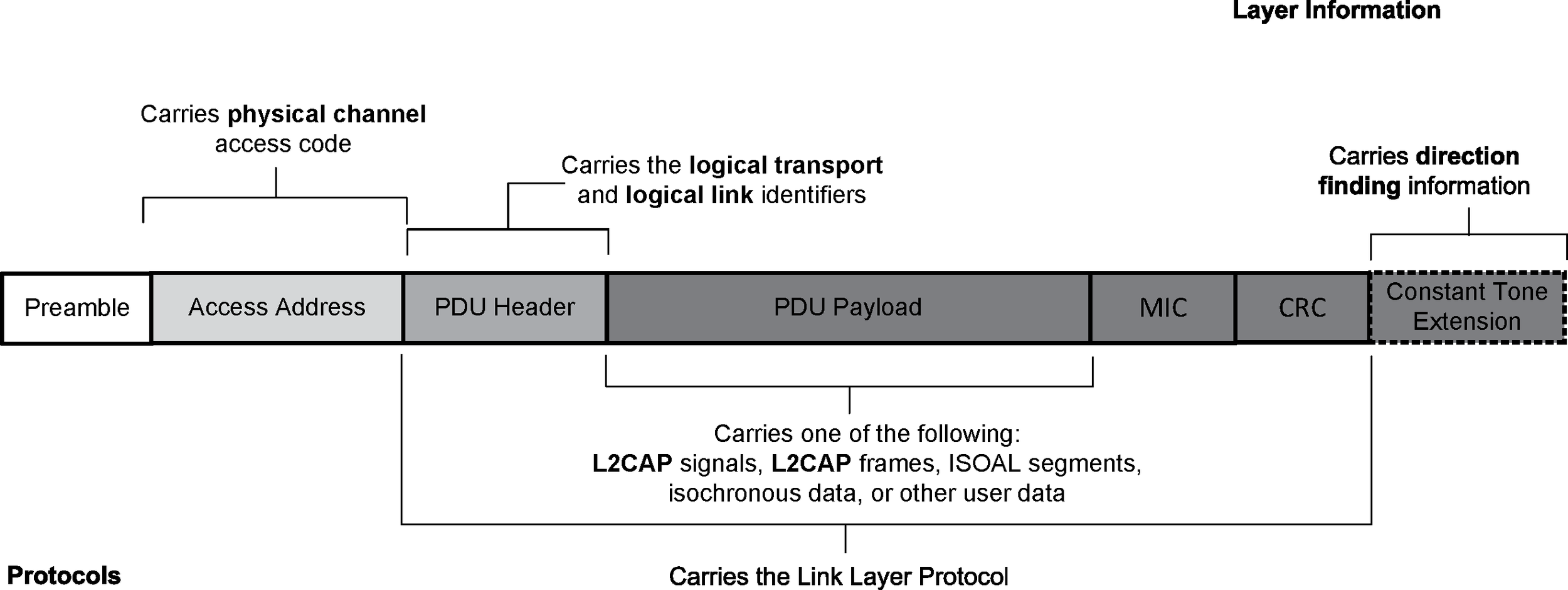

The physical link is used as a transport for one or more logical links that support asynchronous traffic. Traffic on logical links is multiplexed onto the physical link assigned by a scheduling function in the resource manager.
A control protocol for the link and physical layers is carried over logical links in addition to user data. This is the Link Layer protocol (LL). Devices that are active in a piconet have a default LE asynchronous connection logical transport (LE ACL) that is used to transport the LL protocol signaling. The default LE ACL is the one that is created whenever a piconet is created.
The Link Layer function uses the LL protocol to control the operation of devices in the piconet and provide services to manage the lower architectural layers (PHY and LL).

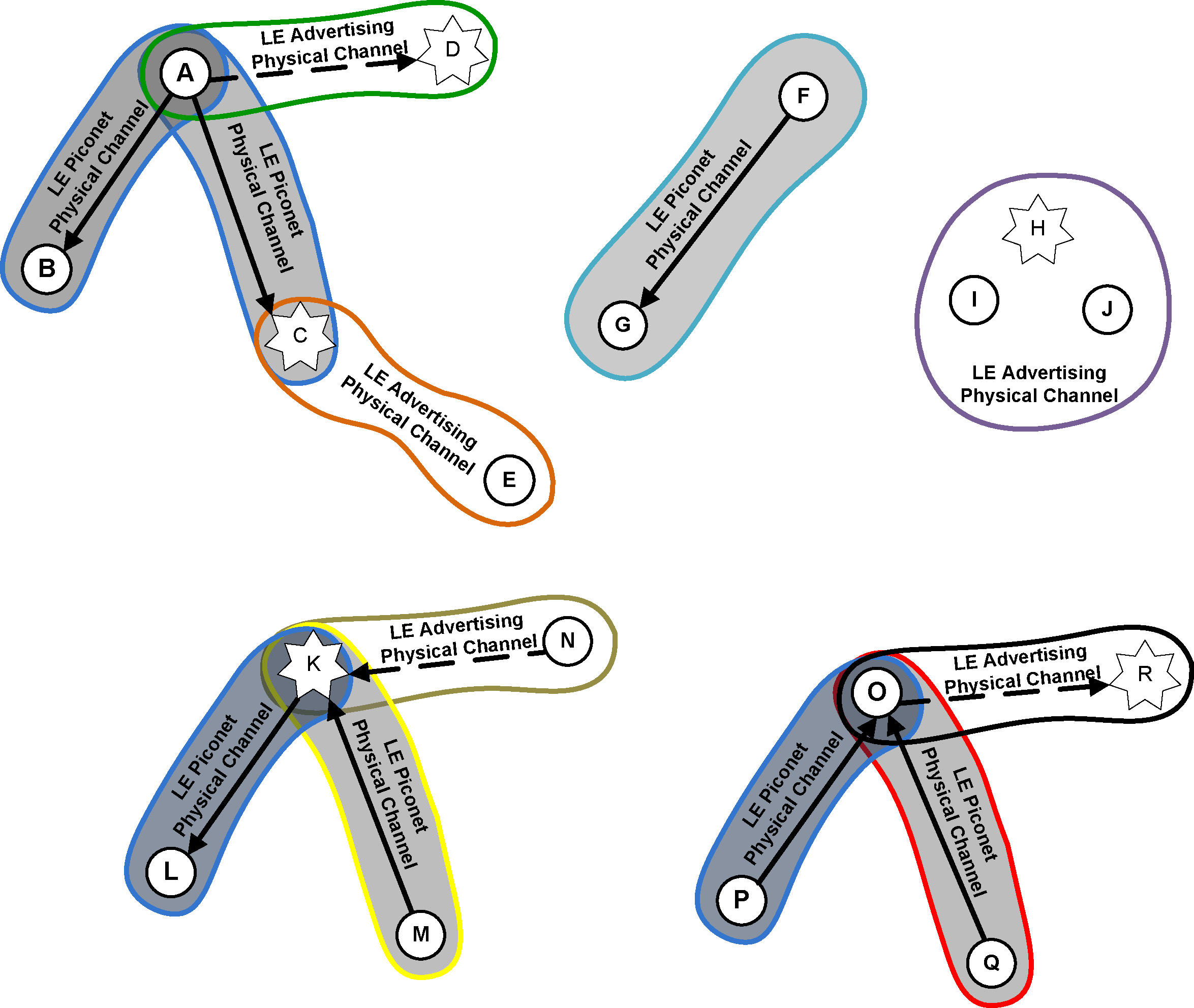

Overall, a piconet consists of one ACL logical transport over the active physical link plus zero or more CIS logical transports over the isochronous physical link(s). In addition, zero or more transitory Channel Sounding procedures may exist over the Channel Sounding physical link.
Just as in BR/EDR, above the Link Layer the L2CAP layer provides a channel-based abstraction to applications and services. It carries out fragmentation and de-fragmentation of application data and multiplexing and de-multiplexing of multiple channels over a shared logical link. L2CAP has a protocol control channel that is carried over the primary ACL logical transport.
In addition to L2CAP, LE provides two additional protocol layers that reside on top of L2CAP. The Security Manager protocol (SMP) uses a fixed L2CAP channel to implement the security functions between devices. The other is the Attribute Protocol (ATT) that provides a method to communicate small amounts of data over a fixed L2CAP channel. The Attribute Protocol is also used by devices to determine the services and capabilities of other devices. The Attribute Protocol may also be used over BR/EDR.

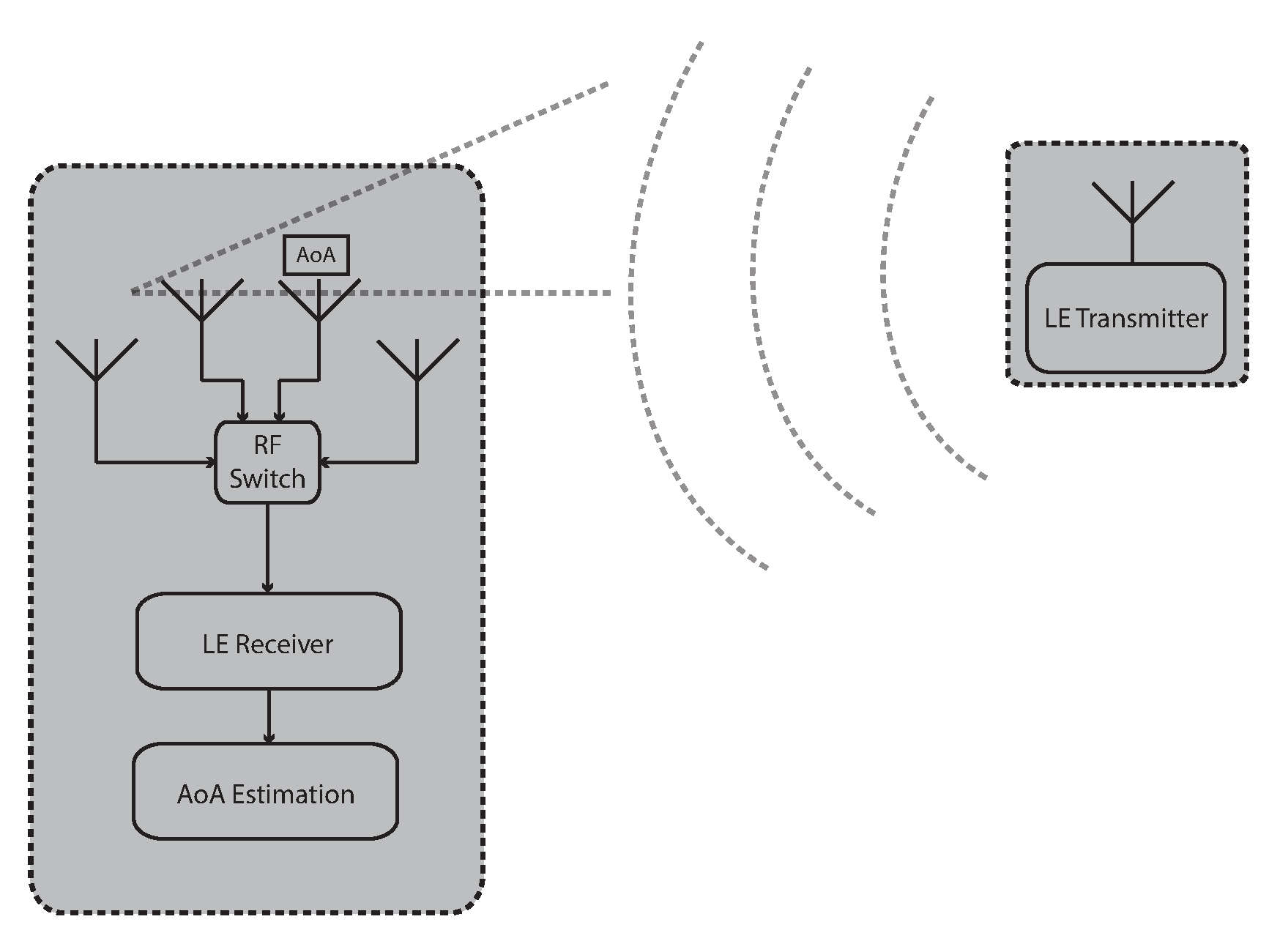

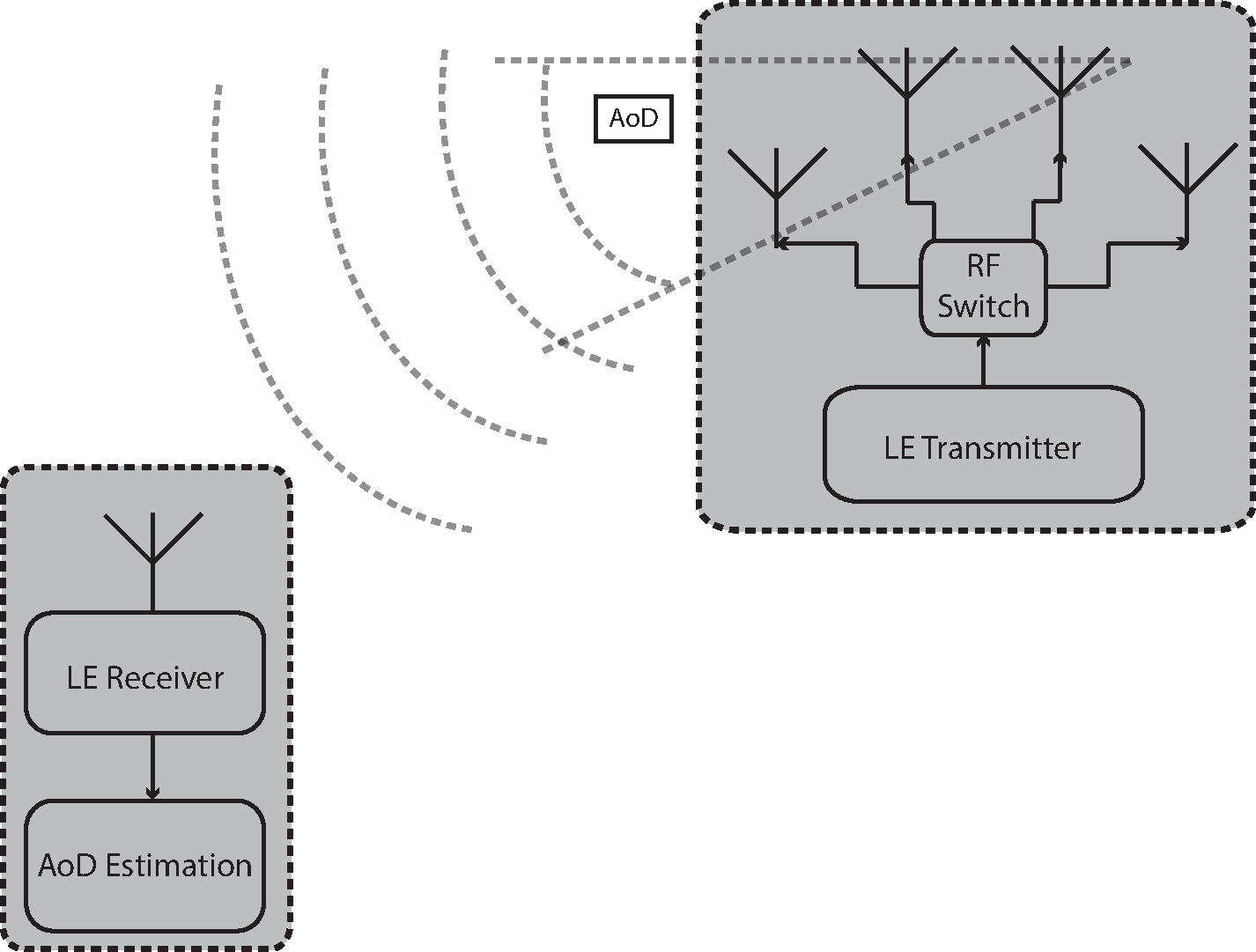

The LE radio provides a means for detecting the relative direction of another LE radio by using the Angle of Arrival (AoA) or Angle of Departure (AoD) method.
1.3. [This section is no longer used]
1.4. Nomenclature
Where the following terms appear in the specification they have the meaning given in Table 1.1.
Active Peripheral Broadcast (APB) | The logical transport that is used to transport L2CAP user traffic and some kinds of LMP traffic to all active devices in the piconet over the BR/EDR Controller. See Section 3.5.4.4 |
Ad Hoc Network | A network typically created in a spontaneous manner. An ad hoc network requires no formal infrastructure and is limited in temporal and spatial extent. |
Advertiser | A Bluetooth Low Energy device that broadcasts advertising packets during advertising events on advertising channels |
Advertising event | A series of between one and three advertising packets on different advertising physical channels sent by an advertiser. |
Advertising Packet | A packet containing an advertising PDU. See [Vol 6] Part B, Section 2.3.1 |
Angle of Arrival (AoA) | Angle of Arrival is the relative direction at which a propagating RF wave that was transmitted by a single antenna is incident on an antenna array. |
Angle of Departure (AoD) | Angle of Departure is the relative direction from which a propagating RF wave that was transmitted using an antenna array is incident on another antenna. |
BD_ADDR | The Bluetooth Device Address, BD_ADDR, is used to identify a Bluetooth device. |
Bluetooth | Bluetooth is a wireless communication link, operating in the unlicensed ISM band at 2.4 GHz using a frequency hopping transceiver. It allows real-time AV and data communications between Bluetooth Hosts. The link protocol is based on time slots. |
Bluetooth Baseband | The part of the Bluetooth system that specifies or implements the medium access and physical layer procedures to support the exchange of real-time voice, data information streams, and ad hoc networking between Bluetooth Devices. |
Bluetooth Clock | A 28 bit clock internal to a BR/EDR Controller sub-system that ticks every 312.5 µs. The value of this clock defines the slot numbering and timing in the various physical channels. |
Bluetooth Controller | A generic term referring to a Controller. |
Bluetooth Device | A device that is capable of short-range wireless communications using the Bluetooth system. |
Bluetooth Device Address | A 48 bit address used to identify each Bluetooth device. |
BR/EDR | Bluetooth basic rate (BR) and enhanced data rate (EDR). |
BR/EDR Controller | A term referring to the Bluetooth Radio, Baseband, Link Manager, and HCI layers. |
BR/EDR Piconet Physical Channel | A Channel that is divided into time slots in which each slot is related to an RF hop frequency. Consecutive hops normally correspond to different RF hop frequencies and occur at a standard hop rate of 1600 hops per second. These consecutive hops follow a pseudo-random hopping sequence, hopping through a 79 RF channel set, or optionally fewer channels when Adaptive Frequency Hopping (AFH) is in use. |
BR/EDR/LE | Bluetooth basic rate (BR), enhanced data rate (EDR) and low energy (LE). |
C-plane | Control plane |
Channel | Either a physical channel or an L2CAP channel, depending on the context. |
Channel Sounding | A Bluetooth Low Energy feature that measures and distributes information that can be used to approximate distances between devices. |
Channel Sounding event | A group of Channel Sounding subevents that are anchored from a common LE connection event. |
Channel Sounding procedure | A group of Channel Sounding events that are sequenced serially for the purpose of gathering information useful for estimating the distance between two devices. |
Channel Sounding step | In Channel Sounding, an individual exchange between two devices. |
Channel Sounding subevent | A group of Channel Sounding steps that are associated with a specific coherent timing. |
Connect (to service) | The establishment of a connection to a service. If not already done, this also includes establishment of a physical link, logical transport, logical link and L2CAP channel. |
Connectable device | A BR/EDR device in range that periodically listens on its page scan physical channel and will respond to a page on that channel. An LE device that is advertising using a connectable advertising event. |
Connected devices | Two BR/EDR devices and with a physical link between them. |
Connecting | A phase in the communication between devices when a connection between the devices is being established. (Connecting phase follows after the link establishment phase is completed.) |
Connection | A connection between two peer applications or higher layer protocols mapped onto an L2CAP channel. |
Connection establishment | A procedure for creating a connection mapped onto a channel. |
Connection event | A series of one or more pairs of interleaving data packets sent between a Central and a Peripheral on the same physical channel. |
Connectionless Peripheral Broadcast (CPB) | A feature that enables a Central to broadcast information to an unlimited number of Peripherals. |
Connectionless Peripheral Broadcast Receiver | A Bluetooth device that receives broadcast information from a Connectionless Peripheral Broadcast Transmitter. The device is a Peripheral of the piconet. |
Connectionless Peripheral Broadcast Transmitter | A Bluetooth device that sends Connectionless Peripheral Broadcast messages for reception by one or more Connectionless Peripheral Broadcast receivers. The device is the Central of the piconet. |
Controller | A collective term referring to all of the layers below HCI. |
Coverage area | The area where two Bluetooth devices can exchange messages with acceptable quality and performance. |
Creation of a secure connection | A procedure of establishing a connection, including authentication and encryption. |
Creation of a trusted relationship | A procedure where the remote device is marked as a trusted device. This includes storing a common link key for future authentication, or pairing, when a link key is not available. |
Device discovery | A procedure for retrieving the Bluetooth Device Address, clock, and Class of Device from discoverable devices. |
Discoverable device | A BR/EDR device in range that periodically listens on an inquiry scan physical channel and will respond to an inquiry on that channel. An LE device in range that is advertising with a connectable or scannable advertising event with a discoverable flag set in the advertising data. This device is in the discoverable mode. |
Discoverable Mode | A Bluetooth device that is performing inquiry scans in BR/EDR or advertising with a discoverable or connectable advertising event with a discoverable flag set in LE. |
Discovery procedure | A Bluetooth device that is carrying out the inquiry procedure in BR/EDR or scanning for advertisers using a discoverable or connectable advertising event with a discoverable flag set in LE. |
HCI | The Host Controller interface (HCI) provides a command interface to the baseband Controller and link manager and access to hardware status and control registers. This interface provides a uniform method of accessing the Bluetooth baseband capabilities. |
Host | A logical entity defined as all of the layers below the non-core profiles and above the Host Controller interface (HCI); i.e., the layers specified in Volume 3. A Bluetooth Host attached to a Bluetooth Controller may communicate with other Bluetooth Hosts attached to their Controllers as well. |
Initiator | From the perspective of an advertising bearer, a Bluetooth Low Energy device that listens on advertising physical channels for connectable advertising events to form connections. From the perspective of Channel Sounding, the device that transmits first within a Channel Sounding step. |
Inquiring device | A BR/EDR device that is carrying out the inquiry procedure. This device is performing the discovery procedure. |
Inquiry | A procedure where a Bluetooth device transmits inquiry messages and listens for responses in order to discover the other Bluetooth devices that are within the coverage area. |
Inquiry scan | A procedure where a Bluetooth device listens for inquiry messages received on its inquiry scan physical channel. |
Interoperability | The ability of two or more devices to exchange information and to use the information that has been exchanged. |
Isochronous data | Information in a stream where each information entity in the stream is bound by a time relationship to previous and successive entities. |
Known device | A Bluetooth device for which at least the BD_ADDR is stored. |
L2CAP | Logical Link Control and Adaptation Protocol |
L2CAP Channel | A logical connection on L2CAP level between two devices serving a single application or higher layer protocol. |
L2CAP Channel establishment | A procedure for establishing a logical connection on L2CAP level. |
LE | Bluetooth Low Energy |
Link | Shorthand for a logical link. |
Link establishment | A procedure for establishing the default ACL link and hierarchy of links and channels between devices. |
Link key | A secret key that is known by two devices and is used to authenticate the link. |
LMP authentication | An LMP level procedure for verifying the identity of a remote device. |
LMP pairing | A procedure that authenticates two devices and creates a common link key that can be used as a basis for a trusted relationship or a (single) secure connection. |
Logical link | The lowest architectural level used to offer independent data transport services to clients of the Bluetooth system. |
Logical transport | Shared acknowledgment protocol and link identifiers between different logical links. |
Name discovery | A procedure for retrieving the user-friendly name (the Bluetooth Device Name) of a connectable device. |
Packet | Format of aggregated bits that are transmitted on a physical channel. |
Page | The initial phase of the connection procedure where a device transmits a train of page messages until a response is received from the target device or a time-out occurs. |
Page scan | A procedure where a device listens for page messages received on its page scan physical channel. |
Paging device | A Bluetooth device that is carrying out the page procedure. |
Paired device | A Bluetooth device for which a link key has been created (either before connection establishment was requested or during connecting phase). |
Passkey | A 6-digit number used to authenticate connections when Secure Simple Pairing is used. |
Periodic advertising synchronization information | The control information describing a periodic advertisement that a Bluetooth Low Energy device uses to synchronize to the advertisement it describes. |
Physical Channel | Characterized by synchronized occupancy of a sequence of RF carriers by one or more devices. A number of physical channel types exist with characteristics defined for their different purposes. |
Physical link | A Baseband or Link Layer level connection between two devices. |
Physical Transport | PHY packet transmission and/or reception on an RF channel using one or more modulation schemes. |
Piconet | A collection of devices (up to eight devices in BR/EDR, exactly two devices in LE) occupying a shared physical channel where one of the devices is the Piconet Central and the remaining devices are connected to it. |
Piconet Central | The BR/EDR device in a piconet whose Bluetooth Clock and Bluetooth Device Address are used to define the piconet physical channel characteristics. The LE device in a piconet which initiates the creation of the piconet, chooses the Access Address that identifies the piconet, and transmits first in each connection event. |
Piconet Peripheral | Any BR/EDR device in a piconet that is not the Piconet Central, but is connected to the Piconet Central. The LE device in a piconet which is not the Central but communicates with it. |
PIN | A user-friendly number that can be used to authenticate connections to a device before pairing has taken place. |
Profile Broadcast Data (PBD) | A logical link that carries data from a Connectionless Peripheral Broadcast Transmitter to one or more Connectionless Peripheral Broadcast Receivers. |
Pseudo-Noise Bit Sequence | A series of bits that are generated randomly. |
Reflector | In Channel Sounding, the device that transmits second within a Channel Sounding step in response to a transmission from an initiator. |

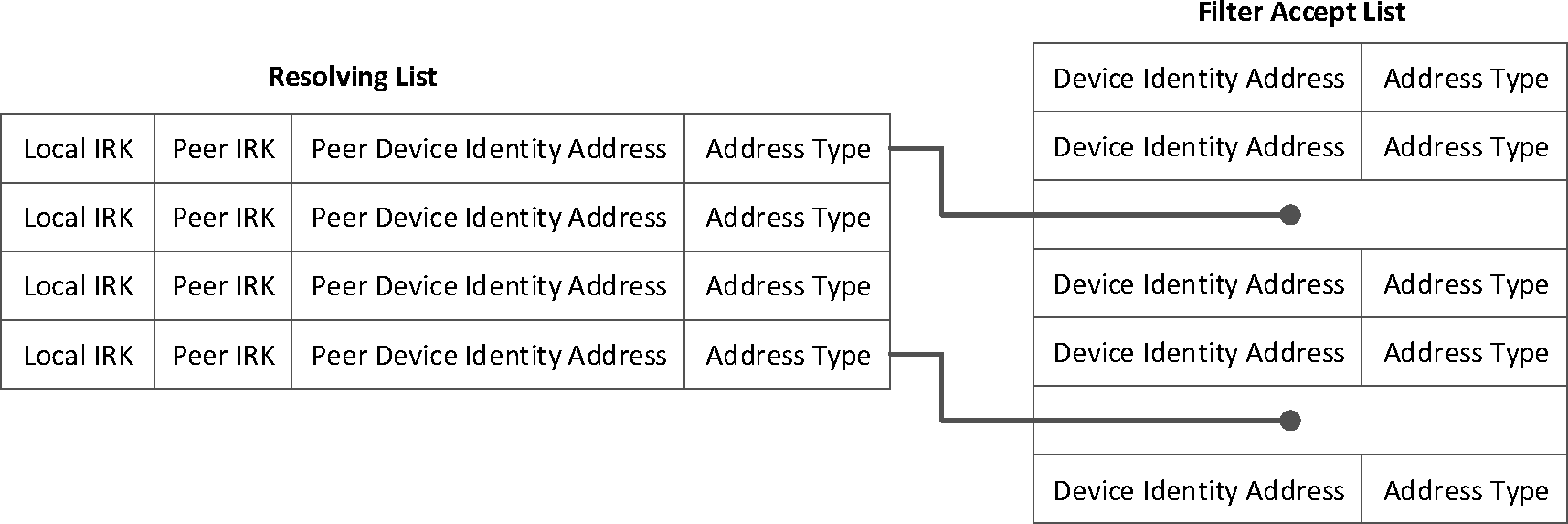

Resolving List | A list of records used to generate and resolve Resolvable Private Addresses. Each record contains a local Identity Resolving Key, a peer Identity Resolving Key, and a peer Identity Address. |

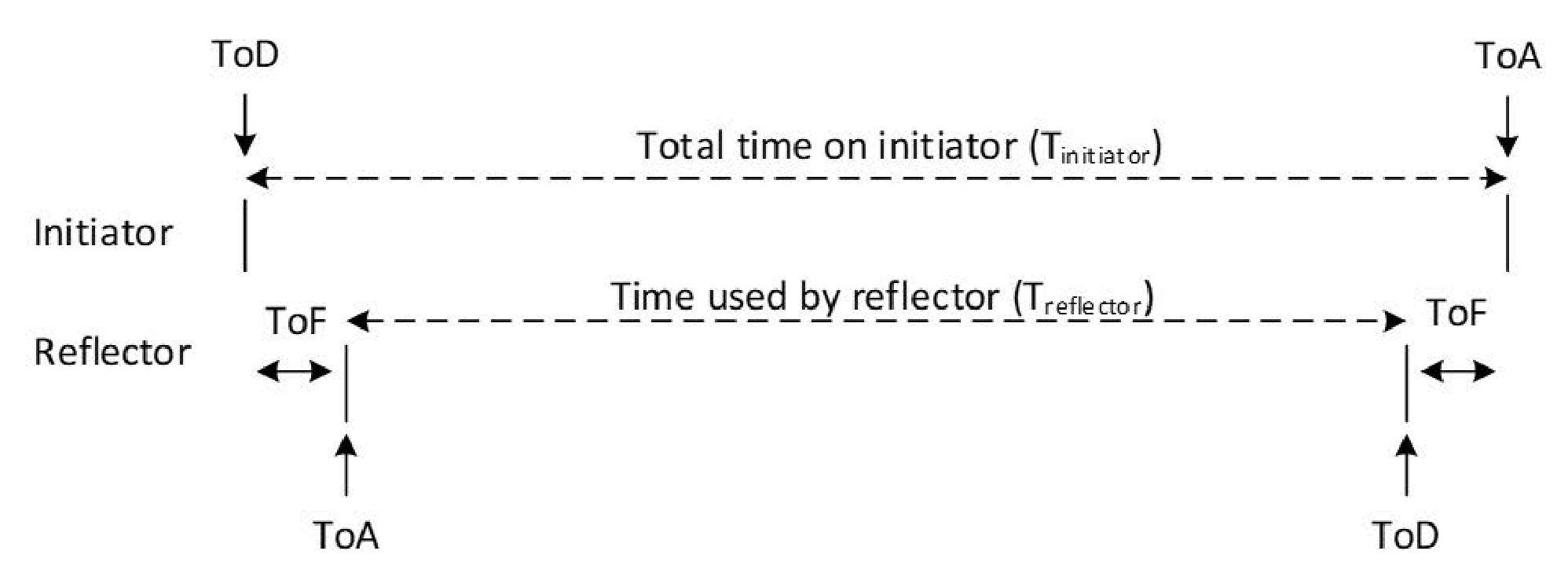

Round-Trip Time | The time it takes for a packet to travel from an originating device to a responding device and back again to the originating device. |
Scanner | A Bluetooth Low Energy device that listens for advertising events on the advertising physical channels. |
Scatternet | Two or more piconets that have one or more devices in common. |
Service discovery | Procedures for querying and browsing for services offered by or through another Bluetooth device. |
Service Layer Protocol | A protocol that uses an L2CAP channel for transporting PDUs. |
Silent device | A Bluetooth enabled device appears as silent to a remote device if it does not respond to inquiries made by the remote device. |
Synchronization Scan Physical Channel | A physical channel that enables a Peripheral to receive synchronization train packets from a Central. |
Synchronization Train | A series of packets transmitted on a set of fixed frequencies that deliver sufficient information for a receiving device to start receiving corresponding Connectionless Peripheral Broadcast packets or to recover the current piconet clock after missing a Coarse Clock Adjust. |
Tick | (BR/EDR) the time between changes of the value of the Bluetooth Clock: 312.5 µs. |
U-plane | User plane |
Unknown device | A Bluetooth device for which no information (Bluetooth Device Address, link key or other) is stored. |
2. Core system architecture
The Bluetooth Core system consists of a Host and a Controller. A minimal implementation of the Bluetooth BR/EDR core system covers the four lowest layers and associated protocols defined by the Bluetooth specification as well as one common service layer protocol; the Service Discovery Protocol (SDP) and the overall profile requirements are specified in the Generic Access Profile (GAP). A minimal implementation of a Bluetooth LE only core system covers the four lowest layers and associated protocols defined by the Bluetooth specification as well as two common service layer protocols; the Security Manager (SM) and Attribute Protocol (ATT) and the overall profile requirements are specified in the Generic Attribute Profile (GATT) and Generic Access Profile (GAP). Implementations combining Bluetooth BR/EDR and LE include both of the minimal implementations described above.
A complete Bluetooth application requires a number of additional service and higher layer protocols that are defined in the Bluetooth specification, but are not described here. The core system architecture is shown in Figure 2.1.

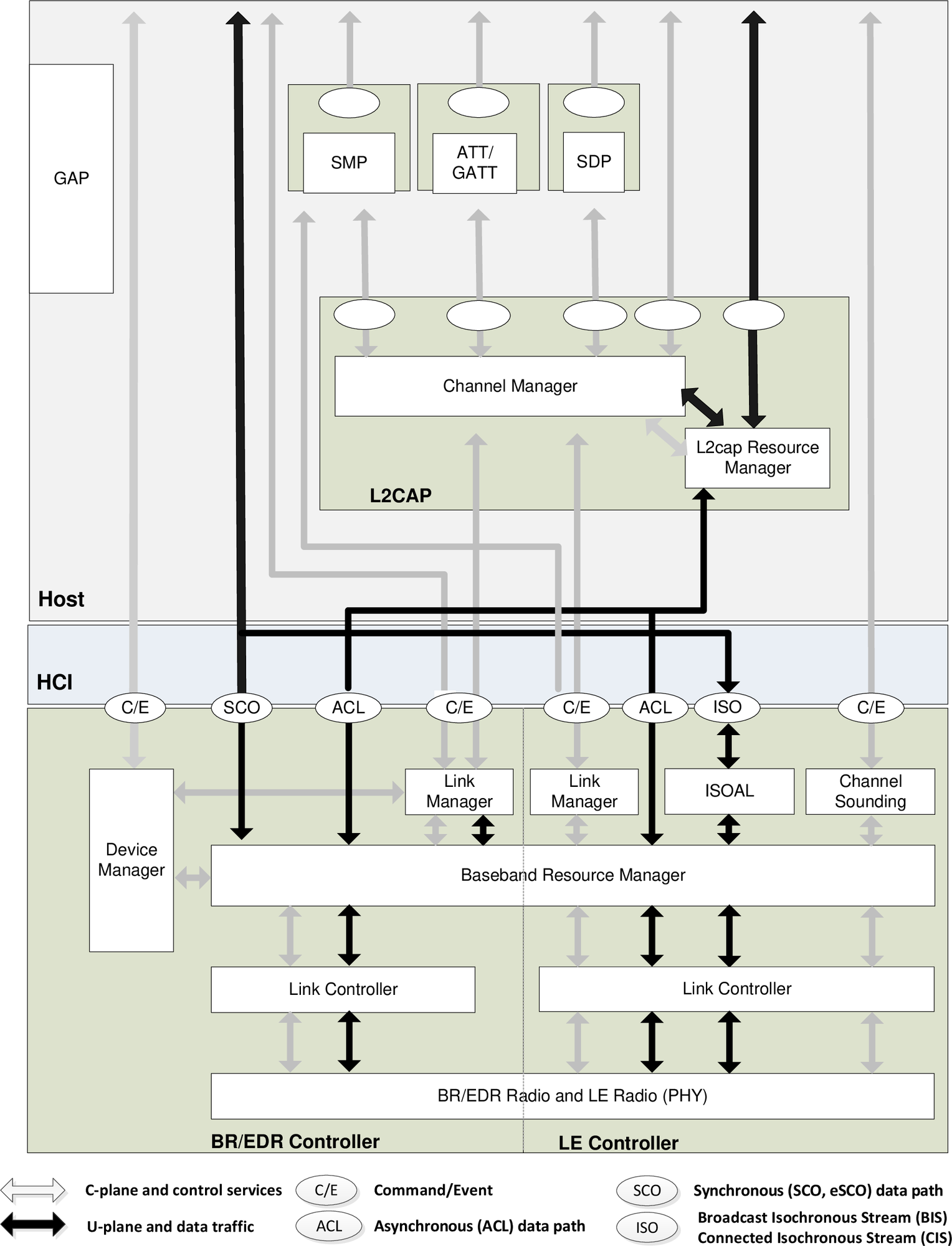

Figure 2.1 shows the Core blocks, each with its associated communication protocol. Link Manager, Link Controller and BR/EDR Radio blocks comprise a BR/EDR Controller. Link Manager, Link Controller and LE Radio blocks comprise an LE Controller. L2CAP, SDP and GAP blocks comprise a BR/EDR Host. L2CAP, SMP, Attribute Protocol, GAP and Generic Attribute Profile (GATT) blocks comprise an LE Host. A BR/EDR/LE Host combines the set of blocks from each respective Host. This is a common implementation involving a standard physical communication interface between the Controller and the Host. Although this interface is optional the architecture is designed to allow for its existence and characteristics. The Bluetooth specification enables interoperability between independent Bluetooth systems by defining the protocol messages exchanged between equivalent layers, and also interoperability between independent Bluetooth Controllers and Bluetooth Hosts by defining a common interface between Bluetooth Controllers and Bluetooth Hosts.
A number of functional blocks and the path of services and data between them are shown. The functional blocks shown in the diagram provide a set of conceptual entities that are used when describing the requirements of the specification; in general the Bluetooth specification does not define the details of implementations except where this is required for interoperability. Thus the functional blocks in Figure 2.1 are shown in order to aid description of the system behavior. An implementation may be different from the system shown in Figure 2.1.
Standard interactions are defined for all inter-device operation, where Bluetooth devices exchange protocol signaling according to the Bluetooth specification. The Bluetooth core system protocols are the Radio (PHY) protocol, Link Control (LC) and Link Manager (LM) protocol or Link Layer (LL) protocol, and Logical Link Control and Adaptation protocol (L2CAP), all of which are fully defined in subsequent parts of the Bluetooth specification. In addition, the Service Discovery protocol (SDP) and the Attribute Protocol (ATT) are service layer protocols that may be required by some Bluetooth applications.
The Bluetooth core system offers services through a number of service access points that are shown in the diagram as ellipses. These services consist of the basic primitives that control the Bluetooth core system. The services can be split into three types. There are device control services that modify the behavior and modes of a Bluetooth device, transport control services that create, modify and release traffic bearers (channels and links), and data services that are used to submit data for transmission over traffic bearers. It is common to consider the first two as belonging to the C-plane and the last as belonging to the U-plane.
A service interface to the Bluetooth Controller is defined such that the Controller may be considered a standard part. In this configuration the Bluetooth Controller operates the lowest four layers. The Bluetooth Host operates the L2CAP layer and other higher layers. The standard interface is called the Host Controller interface (HCI) and its service access points are represented by the ellipses on the upper edge of the Bluetooth Controller in Figure 2.1. Implementation of this standard service interface is optional.
As the Bluetooth architecture is defined with the possibility of separate Host and Controller(s) communicating through one or more HCI transports, a number of general assumptions are made. Bluetooth Controllers are assumed to have limited data buffering capabilities in comparison with the Host. Therefore the L2CAP layer is expected to carry out some simple resource management when submitting L2CAP PDUs to the Controller for transport to a peer device. This includes segmentation of L2CAP SDUs into more manageable PDUs and then the fragmentation of PDUs into start and continuation packets of a size suitable for the Controller buffers, and management of the use of Controller buffers to ensure availability for channels with Quality of Service (QoS) commitments.
The BR/EDR Baseband and LE Link Layer provide the basic acknowledgment/repeat request (ARQ) protocol in Bluetooth. The L2CAP layer can optionally provide a further error detection and retransmission to the L2CAP PDUs. This feature is recommended for applications with requirements for a low probability of undetected errors in the user data. A further optional feature of L2CAP is a window-based flow control that can be used to manage buffer allocation in the receiving device. Both of these optional features augment the QoS performance in certain scenarios. Not all of the L2CAP capabilities are available when using the LE system.
Although these assumptions are not always required for embedded Bluetooth implementations that combine all layers in a single system, the general architectural and QoS models are defined with these assumptions in mind, in effect a lowest common denominator.
Automated conformance testing of implementations of the Bluetooth core system is required. This is achieved by allowing the tester to control the implementation through the PHY interface, test interfaces such as Direct Test Mode (DTM), and test commands and events over HCI which are only required for conformance testing.
The tester exchanges messages with the implementation under test (IUT) through the PHY interface to ensure the correct responses to requests from remote devices. The tester controls the IUT through HCI, DTM, or test commands to cause the IUT to originate exchanges through the PHY interface so that these can also be verified as compliant.
2.1. Core architectural blocks
This section describes the function and responsibility of each of the blocks shown in Figure 2.1. An implementation is not required to follow the architecture described above, though every implementation is still required to conform to the protocol specifications, behaviors, and other requirements specified in subsequent parts of the Bluetooth specification.
2.1.1. Host architectural blocks
2.1.1.1. Channel manager
The channel manager is responsible for creating, managing and closing L2CAP channels for the transport of service protocols and application data streams. The channel manager uses the L2CAP protocol to interact with a channel manager on a remote (peer) device to create these L2CAP channels and connect their endpoints to the appropriate entities. The channel manager interacts with its local link manager to create new logical links (if necessary) and to configure these links to provide the required quality of service for the type of data being transported.
2.1.1.2. L2CAP resource manager
The L2CAP resource manager block is responsible for managing the ordering of submission of PDU fragments to the baseband and some relative scheduling between channels to ensure that L2CAP channels with QoS commitments are not denied access to the physical channel due to Controller resource exhaustion. This is required because the architectural model does not assume that a Controller has limitless buffering, or that the HCI is a pipe of infinite bandwidth.
L2CAP Resource Managers may also carry out traffic conformance policing to check that applications are submitting L2CAP SDUs within the bounds of their negotiated QoS settings. The general Bluetooth data transport model assumes well-behaved applications, and does not define how an implementation is expected to deal with this problem.
2.1.1.3. Security Manager Protocol

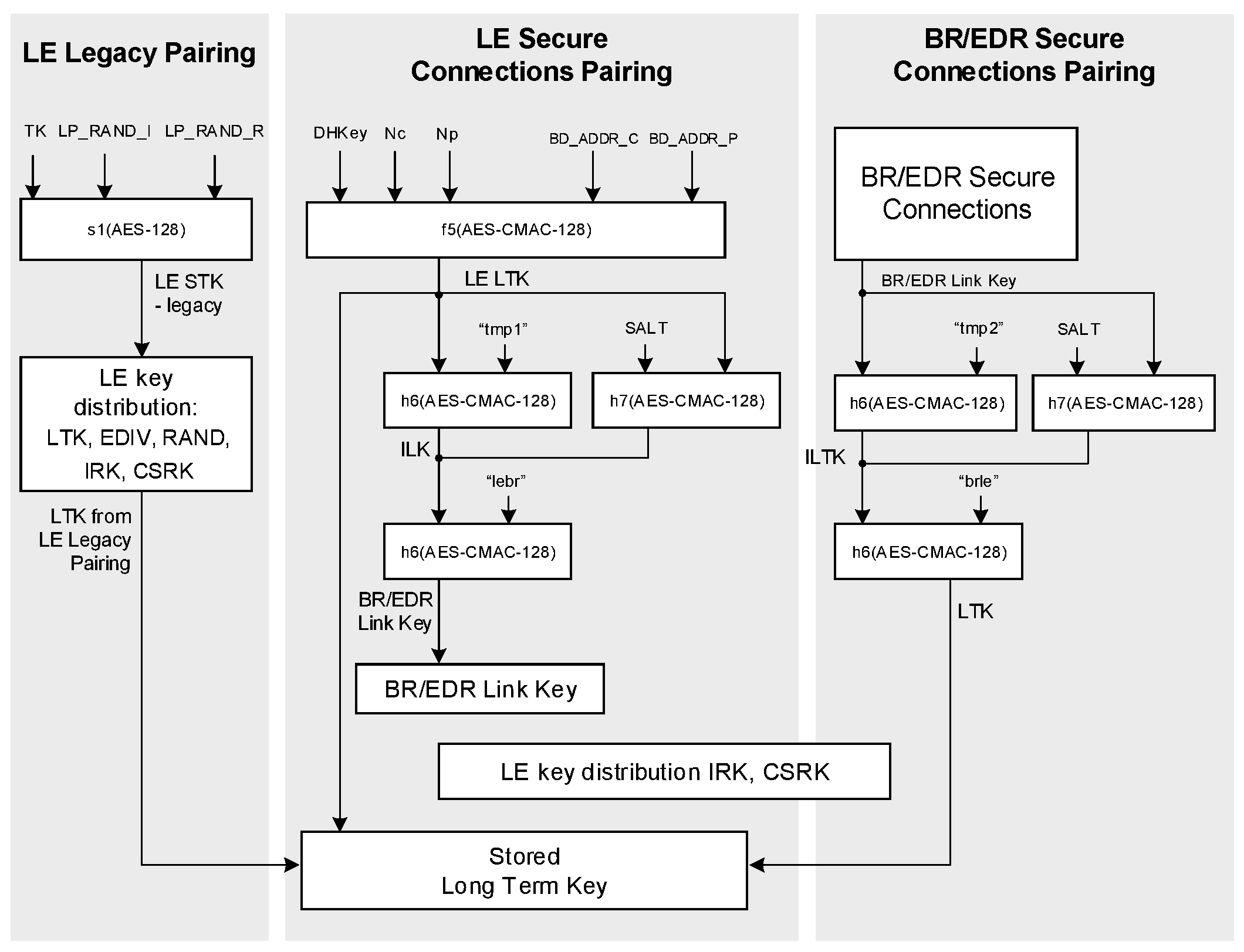

The Security Manager Protocol (SMP) is the peer-to-peer protocol used to generate encryption keys and identity keys. The protocol operates over a dedicated fixed L2CAP channel. The SMP block also manages storage of the encryption keys and identity keys and is responsible for generating random addresses and resolving random addresses to known device identities. The SMP block interfaces with the Controller to provide stored keys used for encryption and authentication during the encryption or pairing procedures.
This block is only used in LE systems. Similar functionality in the BR/EDR system is contained in the Link Manager block in the Controller. SMP functionality is in the Host on LE systems to reduce the implementation cost of the LE only Controllers.
2.1.1.4. Attribute Protocol

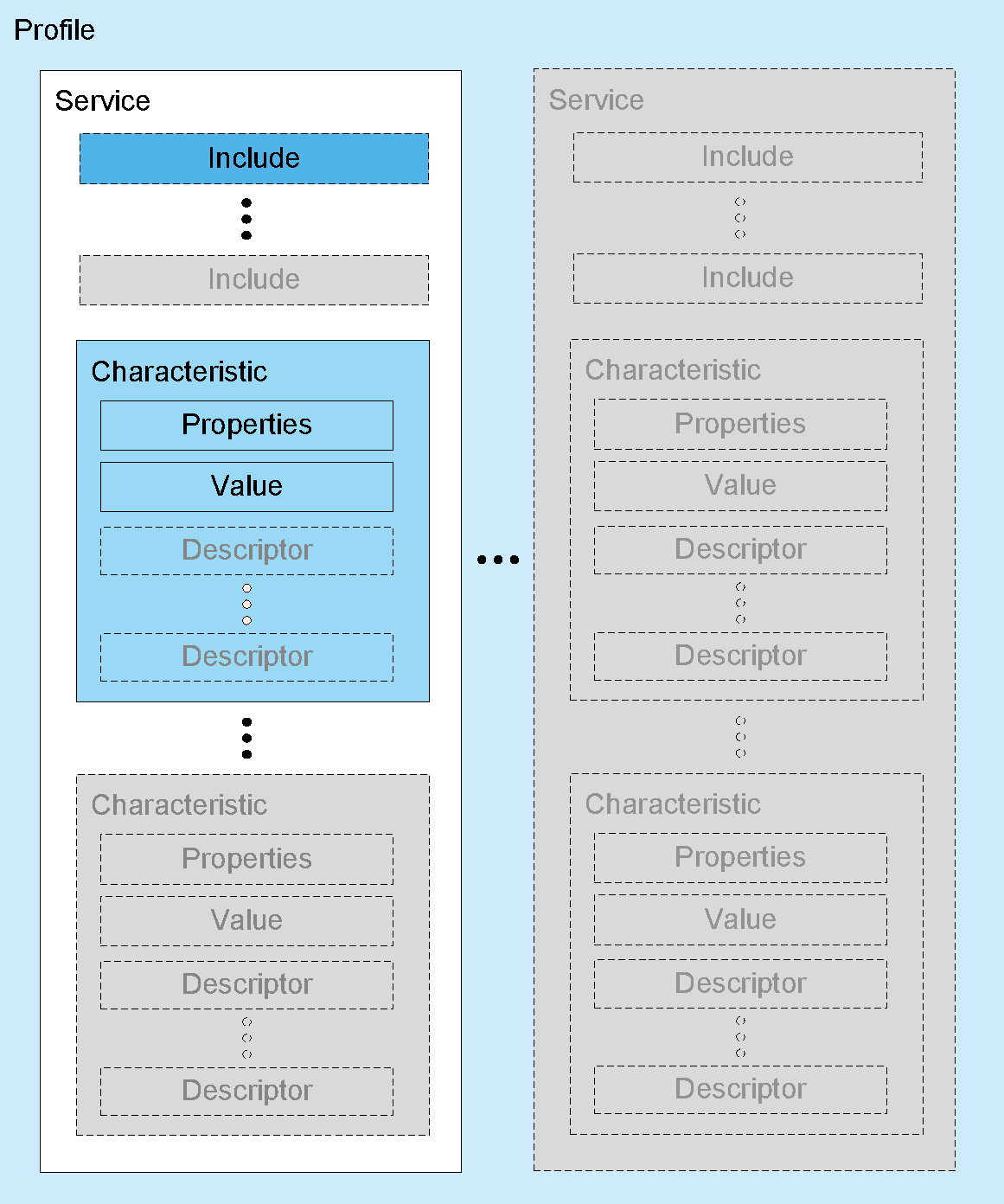

The Attribute Protocol (ATT) block implements the peer-to-peer protocol between an ATT Server and an ATT Client. The ATT Client communicates with an ATT Server on a remote device over a dedicated fixed L2CAP channel. The ATT Client sends commands, requests, and confirmations to the ATT Server. The ATT Server sends responses, notifications and indications to the client. These ATT Client commands and requests provide a means to read and write values of attributes on a peer device with an ATT Server.
2.1.1.5. [This section is no longer used]
2.1.1.6. Generic Attribute Profile
The Generic Attribute Profile (GATT) block represents the functionality of the ATT Server and, optionally, the ATT Client. The profile describes the hierarchy of services, characteristics and attributes used in the ATT Server. The block provides interfaces for discovering, reading, writing and indicating of service characteristics and attributes. GATT is used on LE devices for LE profile service discovery.
2.1.1.7. Generic Access Profile
The Generic Access Profile (GAP) block represents the base functionality common to all Bluetooth devices such as modes and access procedures used by the transports, protocols and application profiles. GAP services include device discovery, connection modes, security, authentication, association models and service discovery.
2.1.1.8. Service Discovery Protocol
The Service Discovery Protocol (SDP) provides a mechanism to allow clients to search for needed services based on specific attributes of the service, including search based on class of service and browsing the entire database. SDP is used on BR/EDR devices for BR/EDR profile service discovery.
SDP focuses on discovering services available from or through Bluetooth devices. It does not define methods for accessing services once they are discovered with SDP; the access method is service-specific.
2.1.2. BR/EDR/LE Controller architectural blocks
In implementations where the BR/EDR and LE systems are combined, the architectural blocks may be shared between systems or each system may have their own instantiation of the block.
2.1.2.1. Device manager
The device manager is the functional block in the baseband that controls the general behavior of the Bluetooth device. It is responsible for all operations of the Bluetooth system that are not directly related to data transport, such as inquiring for the presence of nearby Bluetooth devices, connecting to Bluetooth devices, or making the local Bluetooth device discoverable or connectable by other devices.
The device manager requests access to the transport medium from the baseband resource Controller in order to carry out its functions.
The device manager also controls local device behavior implied by a number of the HCI commands, such as managing the device local name, any stored link keys, and other functionality.
2.1.2.2. Link manager
The link manager is responsible for the creation, modification and release of logical links (and, if required, their associated logical transports), as well as the update of parameters related to physical links between devices. The link manager achieves this by communicating with the link manager in remote Bluetooth devices using the Link Manager Protocol (LMP) in BR/EDR and the Link Layer Protocol (LL) in LE.
The LM or LL protocol allows the creation of new logical links and logical transports between devices when required, as well as the general control of link and transport attributes such as the enabling of encryption on the logical transport, the adapting of transmit power on the physical link, or the adjustment of QoS settings in BR/EDR for a logical link.
2.1.2.3. Baseband resource manager
The baseband resource manager is responsible for all access to the radio medium. It has two main functions. At its heart is a scheduler that grants time on the physical channels to all of the entities that have negotiated an access contract. The other main function is to negotiate access contracts with these entities. An access contract is effectively a commitment to deliver a certain QoS that is required in order to provide a user application with an expected performance.
The access contract and scheduling function must take account of any behavior that requires use of the Controller. This includes (for example) the normal exchange of data between connected devices over logical links, and logical transports, as well as the use of the radio medium to carry out inquiries, make connections, be discoverable or connectable, or to take readings from unused carriers during the use of adaptive frequency hopping mode.
In some cases in BR/EDR systems the scheduling of a logical link results in changing a logical link to a different physical channel from the one that was previously used. This may be (for example) due to involvement in scatternet, a periodic inquiry function, or page scanning. When the physical channels are not time slot aligned, then the resource manager also accounts for the realignment time between slots on the original physical channel and slots on the new physical channel. In some cases the slots will be naturally aligned due to the same device clock being used as a reference for both physical channels.
2.1.2.4. Link Controller
The Link Controller is responsible for the encoding and decoding of Bluetooth packets from the data payload and parameters related to the physical channel, logical transport and logical link.
The Link Controller carries out the link control protocol signaling in BR/EDR and Link Layer protocol in LE (in close conjunction with the scheduling function of the resource manager), which is used to communicate flow control and acknowledgment and retransmission request signals. The interpretation of these signals is a characteristic of the logical transport associated with the baseband packet. Interpretation and control of the link control signaling is normally associated with the resource manager’s scheduler.
2.1.2.5. PHY
The PHY block is responsible for transmitting and receiving packets of information on the physical channel. A control path between the baseband and the PHY block allows the baseband block to control the timing and frequency carrier of the PHY block. The PHY block transforms a stream of data to and from the physical channel and the baseband into required formats.
2.1.2.6. Isochronous Adaptation Layer
The Isochronous Adaptation Layer (ISOAL) enables the upper layer to send or receive isochronous data to or from the Link Layer in a flexible way such that the size and interval of data packets in the upper layer can be different from the size and interval of data packets in the Link Layer. The ISOAL uses fragmentation/recombination or segmentation/reassembly operations to convert upper layer data units into lower layer data units (or the other way around).
2.1.2.7. Channel Sounding
The Channel Sounding block is responsible for creation, modification, and release of Channel Sounding physical links. Channel Sounding related capabilities are first exchanged between peer Channel Sounding blocks and procedure configuration parameters are established. Security parameters are then set up. Thereafter, Channel Sounding exchanges are coordinated via this block, which includes Channel Sounding event, subevent, and step timing. Step transmission and reception is also generated and coordinated through this block. This data is then sent to the Host. From these exchanges, data is collected that may be used by the Host for distance estimation and attack detection.
2.1.3. [This section is no longer used]
3. Transport architecture
The Bluetooth data transport system follows a layered architecture. This description of the Bluetooth system describes the Bluetooth core transport layers up to and including L2CAP channels. All Bluetooth operational modes follow the same generic transport architecture, which is shown in Figure 3.1.
For efficiency and legacy reasons, the Bluetooth transport architecture includes a sub-division of the logical layer, distinguishing between logical links and logical transports. This sub-division provides a general (and commonly understood) concept of a logical link that provides an independent transport between two or more devices. The logical transport sub-layer is required to describe the inter-dependence between some of the logical link types (mainly for reasons of legacy behavior).
The ACL, SCO, and eSCO connections are considered as logical transports but often behave as separate physical links. However, they are not as independent as might be desired, due to their shared use of resources such as the LT_ADDR and acknowledgment/repeat request (ARQ) scheme. Hence the architecture is incapable of representing these logical transports with a single transport layer. The additional logical transport layer goes some way towards describing this behavior.
3.1. Core traffic bearers
The Bluetooth core system provides a number of standard traffic bearers for the transport of service protocol and application data. These are shown in Figure 3.2 below (for ease of representation this is shown with higher layers to the left and lower layers to the right).
The core traffic bearers that are available to applications are shown in Figure 3.2 as the shaded rounded rectangles. The architectural layers that are defined to provide these services are described in Section 2. A number of data traffic types are shown on the left of the diagram linked to the traffic bearers that are typically suitable for transporting that type of data traffic.
The logical links are named using the names of the associated logical transport and a suffix that indicates the type of data that is transported. (C for control links carrying LMP or LL messages, U for L2CAP links carrying user data (L2CAP PDUs) and S for stream links carrying unformatted synchronous or isochronous data.) It is common for the suffix to be removed from the logical link without introducing ambiguity, thus a reference to the default ACL logical transport can be resolved to mean the ACL-C logical link in cases where the LMP protocol is being discussed, the LE-C logical link in cases where LL protocol is being discussed, or the ACL-U or LE-U logical links when the L2CAP layer is being discussed.
The mapping of application traffic types to Bluetooth core traffic bearers in Figure 3.2 is based on matching the traffic characteristics with the bearer characteristics. It is recommended to use these mappings as they provide the most natural and efficient method of transporting the data with its given characteristics.
However, an application (or an implementation of the Bluetooth core system) may choose to use a different traffic bearer, or a different mapping to achieve a similar result. For example, in a BR/EDR piconet with only one Peripheral, the Central may choose to transport L2CAP broadcasts over the ACL-U logical link rather than over the APB-U logical link. This will probably be more efficient in terms of bandwidth (if the physical channel quality is not too degraded). Use of alternative transport paths to those in Figure 3.2 is only acceptable if the characteristics of the application traffic type are preserved.
Figure 3.2 shows a number of application traffic types. These are used to classify the types of data that may be submitted to the Bluetooth core system. The original data traffic type can be different from the type that is submitted to the Bluetooth core system if an intervening process modifies it. For example, video data is generated at a constant rate but an intermediate coding process may alter this to variable rate, e.g. by MPEG4 encoding. For the purposes of the Bluetooth core system, only the characteristic of the submitted data is of interest.
3.1.1. Framed data traffic
The L2CAP layer services provide a frame-oriented transport for asynchronous and isochronous user data. The application submits data to this service in variable-sized frames (up to a negotiated maximum for the channel) and these frames are delivered in the same form to the corresponding application on the remote device. There is no requirement for the application to insert additional framing information into the data, although it may do so if this is required (such framing is invisible to the Bluetooth core system).
Connection-oriented L2CAP channels may be created for transport of unicast (point-to-point) data between two Bluetooth devices. Connection-oriented channels provide a context within which specific properties may be applied to data transported on the channel. For example, quality of service parameters or flow and error control modes may be applied. Connection-oriented L2CAP channels are created using the L2CAP connection procedure.
A connectionless BR/EDR L2CAP channel exists for broadcasting data or for transport of unicast data. In the case of piconet topologies the Central is always the source of broadcast data and the Peripheral(s) are the recipients. Broadcast traffic on the connectionless L2CAP channel is uni-directional. Unicast data sent on the connectionless L2CAP channels may be uni-directional or bi-directional. Unicast data sent on the L2CAP connectionless channel provides an alternate mechanism to send data with the same level of reliability as an L2CAP connection-oriented channel operating in Basic mode but without the additional latency incurred by opening an L2CAP connection-oriented channel. LE L2CAP connectionless channels are not supported.
BR/EDR L2CAP channels have an associated QoS setting that defines constraints on the delivery of the frames of data. These QoS settings may be used to indicate (for example) that the data is isochronous, and therefore has a limited lifetime after which it becomes invalid, or that the data should be delivered within a given time period, or that the data is reliable and should be delivered without error, however long this takes.
Some L2CAP channels are fixed channels created when the ACL-U and/or LE-U logical links are established. These fixed channels have fixed channel identifiers and fixed configurations and do not permit negotiation of the configuration after they are created. These fixed channels are used for BR/EDR and LE L2CAP signaling (ACL-U or LE-U), connectionless channel (ACL-U and APB-U), Security Manager Protocol (LE-U), and Attribute Protocol (ACL-U or LE-U).
The L2CAP channel manager is responsible for arranging to transport the L2CAP channel data frames on an appropriate baseband logical link, possibly multiplexing this onto the baseband logical link with other L2CAP channels with similar characteristics.
3.1.2. Unframed data traffic
If the application does not require delivery of data in frames, possibly because it includes in-stream framing, or because the data is a pure stream, then it may avoid the use of L2CAP channels and make direct use of a baseband logical link.
The Bluetooth core system supports the direct transport of application data that is isochronous and of a constant rate (either bit-rate, or frame-rate for pre-framed data), using a SCO-S or eSCO-S logical link. These logical links reserve physical channel bandwidth and provide a constant rate transport locked to the piconet clock. Data is transported in fixed size packets at fixed intervals with both of these parameters negotiated during channel establishment. eSCO links provide a greater choice of bit-rates and also provide greater reliability by using limited retransmission in case of error. Enhanced Data Rate operation is supported for eSCO, but not for SCO logical transports. SCO and eSCO logical transports do not support multiplexed logical links or any further layering within the Bluetooth core. An application may choose to layer a number of streams within the submitted SCO/eSCO stream, provided that the submitted stream is, or has the appearance of being, a constant rate stream.
The Bluetooth core system also supports the direct transport of application data using a Profile Broadcast Data (PBD) logical link. This logical link is similar to SCO-S and eSCO-S since it reserves physical channel bandwidth, provides a constant rate transport locked to the piconet clock, and transports data at fixed intervals. It does not support multiplexed logical links or any further layering within the Bluetooth core but, unlike SCO-S and eSCO-S, it supports broadcasting data from a single transmitter to many receivers.
The application chooses the most appropriate type of logical link from those available at the baseband, and creates and configures it to transport the data stream, and releases it when completed. (The application will normally also use a framed L2CAP unicast channel to transport its C-plane information to the peer application on the remote device.)
If the application data is isochronous and of a variable rate, then this may only be carried by the L2CAP unicast channel, and hence will be treated as framed data.
Unframed data traffic is not supported in the LE system.
3.1.3. Reliability of traffic bearers
A link or channel is characterized as reliable if the receiver is capable of detecting errors in received packets and requesting retransmission until the errors are removed. This is known as an Automatic Repeat reQuest (ARQ) scheme. Due to the error detection systems used, some residual undetected errors may still remain in the received data. The rate at which these occur depends on the details of the error detection system.
A link or channel is characterized as unreliable if the receiver is not capable of detecting errors in received packets or if it can detect errors but cannot request retransmission. In the latter case (such as with most broadcast links), the packets passed on by the receiver to higher layers may be without error but there is no guarantee that all the packets that were sent are received. Uses for unreliable links are normally dependent on techniques to improve the redundancy of the transmission, such as the use of Forward Error Connection or the repetition of data from the higher layers while the data is valid, in order to increase the probability that the receiver is able to receive at least one of the copies successfully.
3.1.3.1. BR/EDR reliability
Bluetooth is a wireless communications system. In poor RF environments, this system should be considered inherently unreliable. To counteract this the system provides levels of protection at each layer. The baseband packet header uses forward error correcting (FEC) coding to allow error correction by the receiver and a header error check (HEC) to detect errors remaining after correction. Certain Baseband packet types include FEC for the payload. Furthermore, some Baseband packet types include a cyclic redundancy error check (CRC).
On ACL logical transports the results of the error detection algorithm are used to drive a simple ARQ protocol. This provides an enhanced reliability by re-transmitting packets that do not pass the receiver’s error checking algorithm. It is possible to modify this scheme to support latency-sensitive packets by discarding an unsuccessfully transmitted packet at the transmitter if the packet’s useful life has expired. eSCO links use a modified version of this scheme to improve reliability by allowing a limited number of retransmissions.
The resulting reliability gained by this ARQ scheme is only as dependable as the ability of the HEC and CRC codes to detect errors. In most cases this is sufficient, however it has been shown that for the longer packet types the probability of an undetected error is too high to support typical applications, especially those with a large amount of data being transferred.
The L2CAP layer provides an additional level of error control that is designed to detect the occasional errors not detected by the baseband and request retransmission of the affected data. This provides the level of reliability required by typical Bluetooth applications. The resulting rate of residual errors is comparable to the rate in other communication systems.
The transmitter may remove packets from the transmit queue such that the receiver does not receive all the packets in the sequence. If this happens detection of the missing packets is delegated to the L2CAP layer.
Stream links have a reliability characteristic somewhere between a reliable and an unreliable link, depending on the current operating conditions.
3.1.3.2. LE reliability
Like BR/EDR, in poor RF environments, the LE system should be considered inherently unreliable. To counteract this, the system provides levels of protection at each layer. The LL packet uses a 24-bit cyclic redundancy error check (CRC) to cover the contents of the packet payload. If the CRC verification fails on the packet payload, the packet is not acknowledged by the receiver and the packet gets retransmitted by the sender.
Because of the longer CRC and the shorter typical message compared with BR/EDR, it is not necessary for the L2CAP layer to provide a separate error detection and retransmission mechanism.
3.1.3.3. [This section is no longer used]
3.2. Transport architecture entities
The Bluetooth transport architecture entities are shown in Figure 3.3 and are described from the lowest layer upwards in the subsequent sections.
The BR/EDR Physical Transport encapsulates the BR/EDR Physical Channels. Transfers using the BR/EDR Physical Transport use the BR/EDR Generic Packet Structure. The LE Physical Transport encapsulates the LE Physical Channels. Transfers using the LE Physical Transport use the LE Generic Packet Structure for transferring user data and LL control information. The LE Physical Transport is also used for transfers using the Channel Sounding generic packet structure and signaling format.
3.2.1. BR/EDR generic packet structure
The generic packet structure nearly reflects the architectural layers found in the Bluetooth BR/EDR system. The BR/EDR packet structure is designed for optimal use in normal operation. It is shown in Figure 3.4.
 |
Packets normally only include the fields that are necessary to represent the layers required by the transaction. Thus a simple inquiry request over an inquiry scan physical channel does not create or require a logical link or higher layer and therefore consists only of the channel access code (associated with the physical channel).
All packets include the channel access code. This is used to identify communications on a particular physical channel, and to exclude or ignore packets on a different physical channel that happens to be using the same RF carrier in physical proximity.
There is no direct field within the BR/EDR packet structure that represents or contains information relating to physical links. This information is implied by the combination of the logical transport address (LT_ADDR) carried in the packet header and the channel access code (CAC).
Most BR/EDR packets include a packet header. The packet header is always present in packets transmitted on physical channels that support physical links, logical transports and logical links. The packet header carries the LT_ADDR, which is used by each receiving device to determine if the packet is addressed to the device and is used to route the packet internally.
The BR/EDR packet header also carries part of the link control (LC) protocol that is operated per logical transport (except for ACL and SCO transports that operate a shared LC protocol carried on either logical transport).
The Enhanced Data Rate (EDR) packets have a guard time and synchronization sequence before the payload. This is a field used for physical layer change of modulation scheme.
The payload header is present in all packets on logical transports that support multiple logical links. The payload header includes a logical link identifier field used for routing the payload, and a field indicating the length of the payload body. Some packet types also include a CRC at the end of the packet payload that is used to detect most errors in received packets. When AES-CCM encryption is enabled, ACL packets include a Message Integrity Check (MIC) just prior to the CRC.
EDR packets have a trailer after the CRC.
The packet payload body is used to transport the user data. The interpretation of this data is dependent on the logical transport and logical link identifiers. For ACL logical transports Link Manager protocol (LMP) messages and L2CAP signals are transported in the packet payload body, along with general user data from applications.
For SCO, eSCO, and CPB logical transports the payload body contains the user data for the logical link.
3.2.2. LE generic packet structure
LE radio operation is based on four PHYs and makes use of two modulation symbol rates. Table 3.1 summarizes the properties of each of the LE PHYs. Each packet transmitted uses a single PHY. Three of the PHYs are uncoded - that is, each bit maps directly to a single radio symbol in the packet - while the fourth PHY is error correction coded. There are two coding schemes: S=8 and S=2, where S is the number of symbols per bit.
PHY | Modulation symbol rate | Modulation bandwidth-symbol time product (BT) | Coding scheme | Data rate | |||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Access Header | Payload | ||||||||||||||||||||||||||||||||||||||||||||||||
LE 1M | 1 Msym/s modulation | BT=0.5 | Uncoded | Uncoded | 1 Mb/s | ||||||||||||||||||||||||||||||||||||||||||||
LE 2M | 2 Msym/s modulation | BT=0.5 | Uncoded | Uncoded | 2 Mb/s | ||||||||||||||||||||||||||||||||||||||||||||
LE 2M 2BT1 | 2 Msym/s modulation | BT=2.0 | Uncoded | Uncoded | 2 Mb/s | ||||||||||||||||||||||||||||||||||||||||||||
LE Coded | 1 Msym/s modulation | BT=0.5 | S=8 | S=8 | 125 kb/s | ||||||||||||||||||||||||||||||||||||||||||||
S=2 | 500 kb/s | ||||||||||||||||||||||||||||||||||||||||||||||||
1LE 2M 2BT is used only for Channel Sounding. | |||||||||||||||||||||||||||||||||||||||||||||||||
The "Access Header" referred to in Table 3.1 includes all the bits in the packet format associated with the particular PHY prior to the start of the PDU Header but not including the preamble. The preamble is excluded as this is uncoded for all PHYs.
The "Payload" referred to in Table 3.1 includes all the bits in the packet format from the PDU Header to the end of the packet.
The general structure of the Link Layer Air Interface packet closely reflects the architectural layers found in the LE system. The packet structure for the LE Uncoded PHYs is designed for optimal use in normal operation and is shown in Figure 3.5.
The packet structure for the LE Coded PHY is designed for optimal use in extended range operation and is shown in Figure 3.6.
When using the LE Coded PHY, it is recommended to carefully consider the impact of radio-on time for power consumption and duty cycle for scheduling and coexistence over the air. The LE Coded PHY with S=8 coding (125 kb/s) represents the worst case, when considering radio-on time and duty cycle, where each packet sent over the air will be approximately 8 times larger than LE 1M.
Table 3.2 illustrates the on-air time of advertising events with different sizes of AdvData. The first is using connectable and scannable undirected advertising events where the AdvData is sent on the primary advertising physical channel. The second is using events where the AdvData is offloaded to the secondary advertising physical channel. The usage of the primary and secondary advertising physical channels is described in Section 3.3.2.2. Numbers in parentheses are hypothetical and show cases that are not valid.
AdvData [Bytes] | Connectable Undirected Advertising event [µs] | Connectable Undirected Advertising event Using Offloading [µs] | ||
|---|---|---|---|---|
LE 1M | LE Coded S=8 | LE 1M | LE Coded S=8 | |
0 | 384 | (3,312) | 568 | 4,864 |
15 | 744 | (6,192) | 688 | 5,824 |
31 | 1,128 | (9,264) | 816 | 6,848 |
100 | (2,784) | (22,512) | 1,368 | 11,264 |
245 | (6,264) | (50,352) | 2,528 | 20,544 |
Note
Note: The events without offloading were calculated using three ADV_IND PDUs, while the events with offloading used three ADV_EXT_IND PDUs containing only the AuxPtr and ADI fields plus one AUX_ADV_IND PDU with the AdvA and ADI fields present and holding the AdvData.
Table 3.3 illustrates, for a range of payload sizes, the difference in Link Layer Data Physical Channel PDU packet durations for connections over the LE 1M PHY and LE Coded PHY with S=8 coding. Connection duty cycle for a specific implementation may be easily calculated from this information.
Payload [bytes] | LL Data Physical Channel PDU [µs] | |
|---|---|---|
LE 1M | LE Coded S=8 | |
0 | 80 | 720 |
15 | 200 | 1,680 |
31 | 328 | 2,704 |
100 | 880 | 7,120 |
255 | 2,120 | 17,040 |
The physical link identifier is not contained in the Link Layer Air Interface packet. The physical channel identifiers are either fixed, are determined at connection setup, or are determined at periodic advertising setup. All LE packets include the Access Address. This is used to identify communications on a physical channel, and to exclude or ignore packets on different physical channels that are using the same PHY channels in physical proximity. The Access Address determines whether the packet is directed to the advertising physical channel (and thus an advertising physical link) used for non-periodic advertising, the periodic physical channel used for periodic advertising, or to a piconet physical channel (and thus an active physical link to a device). The LE advertising physical channel used for non-periodic advertising uses a fixed Access Address. The LE periodic physical channel used for periodic advertising and LE piconet physical channels use a randomly generated 32-bit value as their Access Address. This provides a high number of periodic advertising trains and a high number of active devices that can be addressed in an LE periodic advertisement or an LE piconet.
All LE packets include a PDU header. The PDU header determines the type of advertisement broadcast or logical link carried over the physical channel.
For advertising physical channel PDUs, the PDU header contains the type of advertisement payload, the device address type for addresses contained in the advertisement, and the advertising physical channel PDU payload length. Most advertising physical channel PDU payloads contain the advertiser's address and advertising data. One advertising physical channel PDU payload only contains the advertiser's device address and the initiator's device address in which the advertisement is directed. Advertising physical channel PDUs with scan requests payloads contain the scanner's device address and the advertiser's device address. Advertising physical channel PDUs with scan responses contain advertiser's device address and the scan response data. Advertising physical channel PDUs with connection request payloads contain the initiator's device address, advertiser's device address and connection setup parameters.
For Data Physical Channel PDUs, the PDU header contains the Logical Link Identifier (LLID), the Next Expected Sequence Number (NESN), Sequence Number (SN), More Data (MD), CTEInfo Present (CP), payload length, and may contain CTEInfo. For Data Physical Channel PDUs that contain control commands, the Data Channel PDU payload contains a command opcode and control data that is specific to the command. There is an optional Message Integrity Check (MIC) value that is used to authenticate the data PDU. For Data Physical Channel PDUs that are data, the Data Physical Channel PDU payload contains L2CAP data.
An Isochronous Physical Channel PDU can be either a Connected Isochronous or Broadcast Isochronous PDU. A Connected Isochronous PDU contains a header and may contain an isochronous payload. The header field contains the Logical Link Identifier (LLID), Sequence Number (SN), Next Expected Sequence Number (NESN), Close Isochronous Event (CIE), Null PDU Indicator (NPI), and the payload length. A Connected Isochronous PDU may also contain a Message Integrity Check (MIC) field.
A Broadcast Isochronous PDU contains a header and either isochronous or control data. The header field contains the Logical Link Identifier (LLID), the Control Subevent Sequence Number (CSSN), the Control Subevent Transmission Flag (CSTF), and the payload length. The Broadcast Isochronous PDU may also contain a Message Integrity Check (MIC) field.
Both advertising physical channel packets and data physical channel packets can contain a Constant Tone Extension, which can be used for determining the relative direction of a received radio signal.
3.2.3. LE Channel Sounding generic packet structure and signaling format
An LE Channel Sounding (CS) operation employs two types of packet structures. The first packet structure makes use of the LE 1M, LE 2M, and LE 2M 2BT PHYs described in Section 3.2.2 and uses the same modulation described for those PHYs. The second packet structure employs the carrier tone modulated with amplitude shift keying.
The first packet structure used with the LE 1M, LE 2M, and LE 2M 2BT PHYs contains a preamble, an Access Address with trailer bits, and an optional payload as shown in Figure 3.7. Unlike the packet formats described in Section 3.2.2, a PDU header is not needed, because the presence and the content type of the optional payload are pre-negotiated.
 |
The Preamble is the same as the preamble described for LE Uncoded PHYs in Section 3.2.2.
Similarly for CS, the Access Address is also the same as described in Section 3.2.2 but contains a bit sequence known only to the CS initiator and reflector pair. This CS Access Address is changed on every transmission.
The Trailer is a 4-bit sequence, alternating between 0 and 1 bits.
The “Payload” also follows the coding scheme rules described in Section 3.2.2. However, its content format is pre-selected and consists of either a bit sequence known only to the initiator and reflector pair, or a repeating [0 1] sounding sequence, with intermittent insertion of markers.
The second packet structure which is modulated using amplitude shift keying consists of one or more transmissions at the channel carrier frequency followed by an optional carrier transmission, over a selected antenna path. An antenna path is defined as single communication path between a specific physical antenna element on a transmitter to a specific physical antenna element on a receiver. The first set of transmissions can repeat over several antenna paths. The presence or non-presence of the final transmission extension concludes this transmission sequence. This format is shown in Figure 3.8.
 |
3.3. Physical channels
A number of types of physical channel are defined. All Bluetooth physical channels are characterized by a set of PHY frequencies combined with temporal parameters and restricted by spatial considerations. For the basic and adapted piconet physical channels frequency hopping is used to change frequency periodically to reduce the effects of interference and for regulatory reasons.
The Bluetooth BR/EDR system and LE system differ slightly in the way they use physical channels.
3.3.1. BR/EDR physical channels
In the BR/EDR core system, peer devices use a shared physical channel for communication. To achieve this their transceivers need to be tuned to the same PHY frequency at the same time, and they need to be within a nominal range of each other.
Given that the number of RF carriers is limited and that many Bluetooth devices may be operating independently within the same spatial and temporal area there is a strong likelihood of two independent Bluetooth devices having their transceivers tuned to the same RF carrier, resulting in a physical channel collision. To mitigate the unwanted effects of this collision each transmission on a physical channel starts with an access code that is used as a correlation code by devices tuned to the physical channel. This channel access code is a property of the physical channel. The access code is present at the start of every transmitted packet.
Several BR/EDR physical channels are defined. Each is optimized and used for a different purpose. Two of these physical channels (the basic piconet channel and adapted piconet channel) are used for communication between connected devices and are associated with a specific piconet. Other BR/EDR physical channels are used for discovering (the inquiry scan channel) and connecting (the page scan channel) Bluetooth devices. The synchronization scan physical channel is used by devices to obtain timing and frequency information about the Connectionless Peripheral Broadcast physical link or to recover the current piconet clock.
A Bluetooth device can only use one BR/EDR physical channel at any given time. In order to support multiple concurrent operations the device uses time-division multiplexing between the channels. In this way a Bluetooth device can appear to operate simultaneously in several piconets, as well as being discoverable and connectable.
Whenever a Bluetooth device is synchronized to the timing, frequency and access code of a physical channel it is said to be ‘connected’ to this channel (whether or not it is actively involved in communications over the channel). The Bluetooth specification assumes that a device is only capable of connecting to one physical channel at any time. Advanced devices may be capable of connecting simultaneously to more than one physical channel, but the specification does not assume that this is possible.
3.3.1.1. Basic piconet channel
3.3.1.1.1. Overview
The basic piconet channel is used for communication between connected devices during normal operation.
3.3.1.1.2. Characteristics
The basic piconet channel is characterized by a pseudo-random sequence hopping through the PHY channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth Device Address of the Central. The phase in the hopping sequence is determined by the Bluetooth clock of the Central. All Bluetooth devices participating in the piconet are time- and hop-synchronized to the channel.
The channel is divided into time slots where each slot corresponds to an PHY hop frequency. Consecutive hops correspond to different PHY hop frequencies. The time slots are numbered according to the Bluetooth clock of the piconet Central. Packets are transmitted by Bluetooth devices participating in the piconet aligned to start at a slot boundary. Each packet starts with the channel access code, which is derived from the Bluetooth Device Address of the piconet Central.
On the basic piconet channel the Central controls access to the channel. The Central starts its transmission in even-numbered time slots only. Packets transmitted by the Central are aligned with the slot start and define the piconet timing. Packets transmitted by the Central may occupy up to five time slots depending on the packet type.
Each Central transmission is a packet carrying information on one of the logical transports. Peripherals may transmit on the physical channel in response. The characteristics of the response are defined by the logical transport that is addressed.
For example, on the asynchronous connection-oriented logical transport (ACL), the addressed Peripheral responds by transmitting a packet containing information for the same logical transport that is nominally aligned with the next (odd-numbered) slot start. Such a packet may occupy up to five time slots, depending on the packet type. On a broadcast logical transport no Peripherals are allowed to respond.
3.3.1.1.3. Topology
A basic piconet channel may be shared by any number of Bluetooth devices, limited only by the resources available on the piconet Central. Only one device is the piconet Central, all others being piconet Peripherals. All communication is between the Central and Peripherals. There is no direct communication between Peripherals on the piconet channel.
There is, however, a limitation on the number of logical transports that can be supported within a piconet. This means that although there is no theoretical limit to the number of Bluetooth devices that share a channel there is a limit to the number of these devices that can be actively involved in exchanging data with the Central.
3.3.1.1.4. Supported layers
The basic piconet channel supports a number of physical links, logical transports, logical links and L2CAP channels used for general purpose communications.
3.3.1.2. Adapted piconet channel
3.3.1.2.1. Overview
The adapted piconet channel differs from the basic piconet channel in two ways. First, the frequency on which a Peripheral transmits is the same as the frequency used by its Central in the preceding transmission. In other words the frequency is not recomputed between Central and subsequent Peripheral packets. Second, the adapted piconet channel may be based on fewer than the full 79 frequencies. A number of frequencies may be excluded from the hopping pattern by being marked as “unused”. The remainder of the 79 frequencies are included. The two sequences are the same except that whenever the basic pseudo-random hopping sequence selects an unused frequency, it is replaced with an alternative chosen from the used set. The set of frequencies used may vary between different physical links on the same adapted piconet channel.
Because the adapted piconet channel uses the same timing and access code as the basic piconet channel, physical links on the two channels are often coincident. This provides a deliberate benefit as it allows Peripherals in either the basic piconet channel or the adapted piconet channel to adjust their synchronization to the Central.
The topology and supported layers of the adapted piconet physical channel are identical to the basic piconet physical channel with one exception: on the adapted piconet physical channel, it is possible for a single Central to transmit data to an unlimited number of Peripherals using a single CPB logical transport. In this case, however, data is only transferred from Central to Peripheral and not from Peripheral to Central.
3.3.1.3. Inquiry scan channel
3.3.1.3.1. Overview
In order for a device to be discovered, an inquiry scan channel is used. A discoverable device listens for inquiry requests on its inquiry scan channel and then sends a response to that request. In order for a device to discover other devices, it iterates (hops) through all possible inquiry scan channel frequencies in a pseudo-random fashion, sending an inquiry request on each frequency and listening for any response.
3.3.1.3.2. Characteristics
Inquiry scan channels follow a slower hopping pattern and use an access code to distinguish between occasional occupancy of the same radio frequency by two co-located devices using different physical channels.
The access code used on the inquiry scan channel is taken from a reserved set of inquiry access codes that are shared by all Bluetooth devices. One access code is used for general inquiries, and a number of additional access codes are reserved for limited inquiries. Each device has access to a number of different inquiry scan channels. As all of these channels share an identical hopping pattern, a device may concurrently occupy more than one inquiry scan channel if it is capable of concurrently correlating more than one access code.
A device using one of its inquiry scan channels remains passive on that channel until it receives an inquiry message on this channel from another Bluetooth device. This is identified by the appropriate inquiry access code. The inquiry scanning device will then follow the inquiry response procedure to return a response to the inquiring device.
In order for a device to discover other Bluetooth devices it uses the inquiry scan channel to send inquiry requests. As it has no prior knowledge of the devices to discover, it cannot know the exact characteristics of the inquiry scan channel.
The device takes advantage of the fact that inquiry scan channels have a reduced number of hop frequencies and a slower rate of hopping. The inquiring device transmits inquiry requests on each of the inquiry scan hop frequencies and listens for an inquiry response. Transmissions are done at a faster rate, allowing the inquiring device to cover all inquiry scan frequencies in a reasonably short time period.
3.3.1.3.3. Topology
Inquiring and discoverable devices use a simple exchange of packets to fulfill the inquiring function. The topology formed during this transaction is a simple and transient point-to-point connection.
3.3.1.3.4. Supported layers
During the exchange of packets between an inquiring and discoverable device it may be considered that a temporary physical link exists between these devices. However, the concept is quite irrelevant as it has no physical representation but is only implied by the brief transaction between the devices. No further architectural layers are considered to be supported.
3.3.1.4. Page scan channel
3.3.1.4.1. Overview
A connectable device (one that is prepared to accept connections) does so using a page scan channel. A connectable device listens for a page request on its page scan channel and, once received, enters into a sequence of exchanges with this device. In order for a device to connect to another device, it iterates (hops) through all page scan channel frequencies in a pseudo-random fashion, sending a page request on each frequency and listening for a response.
3.3.1.4.2. Characteristics
The page scan channel uses an access code derived from the scanning device’s Bluetooth Device Address to identify communications on the channel. The page scan channel uses a slower hopping rate than the hop rate of the basic and adapted piconet channels. The hop selection algorithm uses the Bluetooth device clock of the scanning device as an input.
A device using its page scan channel remains passive until it receives a page request from another Bluetooth device. This is identified by the page scan channel access code. The two devices will then follow the page procedure to form a connection. Following a successful conclusion of the page procedure both devices switch to the basic piconet channel that is characterized by having the paging device as Central.
In order for a device to connect to another Bluetooth device it uses the page scan channel of the target device in order to send page requests. If the paging device does not know the phase of the target device’s page scan channel it therefore does not know the current hop frequency of the target device. The paging device transmits page requests on each of the page scan hop frequencies and listens for a page response. This is done at a faster hop rate, allowing the paging device to cover all page scan frequencies in a reasonably short time period.
The paging device may have some knowledge of the target device’s Bluetooth clock (indicated during a previous inquiry transaction between the two devices, or as a result of a previous involvement in a piconet with the device), in this case it is able to predict the phase of the target device’s page scan channel. It may use this information to optimize the synchronization of the paging and page scanning process and speed up the formation of the connection.
3.3.1.4.3. Topology
Paging and connectable devices use a simple exchange of packets to fulfill the paging function. The topology formed during this transaction is a simple and transient point-to-point connection.
3.3.1.4.4. Supported layers
During the exchange of packets between a paging and connectable device it may be considered that a temporary physical link exists between these devices. However, the concept is quite irrelevant as it has no physical representation but is only implied by the brief transaction between the devices. No further architectural layers are considered to be supported.
3.3.1.5. Synchronization scan channel
3.3.1.5.1. Overview
In order to receive packets sent on the CPB logical transport, a device must first obtain information about the timing and frequency channels of those packets. If a device misses a Coarse Clock Adjustment notification, it needs to recover the current piconet clock. The synchronization scan channel is provided for these purposes. A scanning device listens for synchronization train packets on the synchronization scan channel. Once a synchronization train packet is received, the device may stop listening for synchronization train packets because it has the timing and frequency information necessary to start receiving packets sent on the CPB logical transport or to recover the piconet clock.
3.3.1.5.2. Characteristics
The synchronization scan channel uses an access code derived from the Bluetooth Device Address of the synchronization train transmitter to identify synchronization train packets on the channel. Once a synchronization train packet is received, the scanning BR/EDR Controller may start receiving packets sent on the CPB logical transport, depending on the needs of the Host and any applicable profile(s).
3.3.1.5.3. Topology
The topology formed during this scan is transient and point-to-multipoint. There can be an unlimited number of scanning devices simultaneously receiving synchronization train packets from the same synchronization train transmitter.
3.3.1.5.4. Supported layers
There is a one-way flow of packets from the synchronization train transmitting device to the scanning device(s). This may be considered a temporary physical link that exists only until the scanning device receives the required information. No further architectural layers are considered to be supported.
3.3.2. LE physical channels
In the LE core system, two Bluetooth devices use a shared physical channel for communication. To achieve this, their transceivers need to be tuned to the same PHY frequency at the same time, and they need to be within a nominal range of each other.
Given that the number of PHY channels is limited, and many Bluetooth devices can be operating independently within the same spatial and temporal area, there is a strong likelihood of two pairs of independent Bluetooth devices having their transceivers tuned to the same PHY channel, resulting in a collision. Unlike BR/EDR, where an access code is used to identify the piconet, LE uses a randomly generated Access Address to identify a physical channel between devices. In the event that two devices happen to share the same PHY channel in the same area, the targeted device Access Address is used as a correlator to determine to which device the communication is directed.
Five LE physical channels are defined. Each is optimized and used for a different purpose. The LE piconet physical channel is used for communication between connected devices and is associated with a specific piconet. The LE advertising physical channel is used for broadcasting advertisements to LE devices. These advertisements can be used to discover, connect, or send user data to scanner or initiator devices. The periodic physical channel is used to send user data to scanner devices in periodic advertisements at a specified interval. The LE isochronous physical channel is used to transfer isochronous data between LE devices in an LE piconet or to transfer isochronous data between unconnected LE devices. The LE Channel Sounding physical channel carries security-related information, as well as content used for the purpose of measuring the time, phase, and amplitude of the communication channel between two LE devices in an LE piconet.
An LE device can only use one of these LE physical channels at any given time. In order to support multiple concurrent operations the device uses time-division multiplexing between the channels. In this way a Bluetooth device can appear to support connected devices while simultaneously sending advertising broadcasts.
Whenever an LE device is synchronized to the timing and frequency of the physical channel it is said to be connected or synchronized to this channel (whether or not it is actively involved in communications over the channel). The Bluetooth specification assumes that a device is only capable of connecting to one physical channel at a time. Advanced devices may be capable of connecting or synchronizing simultaneously to more than one physical channel, but the specification does not make this assumption.
Packets on both the LE piconet physical channel and the LE advertisement broadcast channel can contain a Constant Tone Extension that can be used for the purpose of direction finding.
3.3.2.1. LE piconet physical channel
3.3.2.1.1. Overview
The LE piconet physical channel is used for communication between connected LE devices during normal operation.
3.3.2.1.2. Characteristics
The LE piconet physical channel is characterized by the access address, a pseudo-random sequence of PHY channels, and three additional parameters provided by the Central. The first is the channel map that indicates the set of PHY channels used in the piconet. The second is a pseudo random number used as an index into the complete set of PHY channels. The third is the timing of the first data packet sent by the Central after the connection request.
The channel is divided into connection events where each connection event corresponds to a PHY hop channel. Consecutive connection events correspond to different PHY hop channels. The first packet sent by the Central after the connection establishment sets an anchor point for the timing of all future connection events. In a connection event the Central transmits packets to a Peripheral in the piconet and the Peripheral may respond with a packet of its own.
On the LE piconet physical channel the Central controls access to the channel. The Central starts its transmission in a connection event that occurs at regular intervals. Packets transmitted by the Central are aligned with the connection event start and define the piconet timing.
Each Central transmission contains a packet carrying information on one of the logical transports. The Peripheral can transmit on the physical channel in response.
The LE piconet physical channel is similar to the BR/EDR adapted piconet channel in that the set of PHY channels used can be modified to avoid interference. The set of used channels in the channel map is established by the Central during connection setup. While in a connection the Central can change the channel map when necessary to avoid new interferers. The Peripheral can provide channel classification information to the Central.
There are 37 LE piconet channels. The Central can reduce this number through the channel map indicating the used channels. When the hopping pattern hits an unused channel the unused channel is replaced with an alternate from the set of used channels. The LE Piconet physical channel can use any LE PHY.
3.3.2.1.3. Topology
An LE piconet physical channel is shared by exactly two LE devices.
An LE device may belong to one or more piconets at a time, that is, an LE device may be a Peripheral in zero or more piconets and may also be a Central in zero or more piconets.
Only one LE piconet physical channel can exist between two LE device identities or non-resolvable private addresses.
3.3.2.1.4. Supported layers
The LE piconet physical channel supports L2CAP channels used for general purpose communications.
3.3.2.2. Advertising physical channels
3.3.2.2.1. Overview
An LE advertising physical channel is used to set up connections between two devices or to communicate broadcast information between unconnected devices.
3.3.2.2.2. Characteristics
There are two LE advertising physical channels: the primary advertising physical channel and the secondary advertising physical channel.
The primary advertising physical channel is a set of three fixed PHY channels spread evenly across the LE frequency spectrum. The number of primary advertising PHY channels can be reduced by the advertising device in order to reduce interference. The primary advertising physical channel can use either the LE 1M or LE Coded PHY.
The primary advertising physical channel is divided into advertising events where each advertising event can hop on all primary advertising PHY channels. The advertising events occur at regular intervals which are slightly modified with a random delay to aid in interference avoidance.
On the primary advertising physical channel the advertising device controls access to the physical channel. The advertising device starts its transmission in an advertising event and transmits advertising packets on one or more of the primary advertising PHY channels. Each advertising packet is sent on a different advertising PHY channel at a fixed interval. Seven types of advertising events can be used, with each advertising event type having different sized advertising packets. The PDU payloads of these advertising packets can vary in length from 6 to 37 octets.
Some advertising events sent by the advertising device permit the listening device to concurrently send scan requests or connection requests packets on the same advertising PHY channel in which the advertising packet was received. The advertising device can send a scan response packet again on the same advertising PHY channel within the same advertising event. The payload of the scan response packet can vary in length from 6 to 37 octets.
The secondary advertising physical channel is a set of 37 fixed PHY channels spread across the LE frequency spectrum. These are the same fixed LE PHY channels used by the data physical channel. The secondary advertising physical channel uses the same channel indices as the data physical channel. The payload of advertising packets used on the secondary advertising physical channel can vary in length from 0 to 255 octets. Advertising packets on the secondary advertising physical channel are not part of the advertising event but are part of the extended advertising event. These extended advertising events begin at the same time as the advertising event on the primary advertising physical channel and conclude with the last packet on the secondary advertising physical channel.
The secondary advertising physical channel is used to offload data that would otherwise be transmitted on the primary advertising physical channel. Advertising packets on the secondary advertising physical channel ("auxiliary packets") are scheduled by the advertiser when sufficient over-the-air time is available. The advertising packet on the primary advertising physical channel contains the PHY channel and the offset to the start time of the auxiliary packet.
The secondary advertising physical channel can use any LE PHY. All advertising packets on the secondary advertising physical channel in the same extended advertising event use the same PHY, which is specified in the advertising packet on the primary advertising physical channel.
3.3.2.2.3. Topology
An LE advertising physical channel can be shared by any number of LE devices. Any number of LE devices can transmit advertising packets while sharing the advertising physical channel. Any number of scanning devices can listen on the advertising physical channel. An advertising device can advertise and be connected on an LE piconet physical channel simultaneously. Scanning devices may also be connected to one or more LE piconet physical channels simultaneously.
3.3.2.3. Periodic physical channel
3.3.2.3.1. Overview
An LE periodic physical channel is used to set up a periodic broadcast between unconnected devices.
3.3.2.3.2. Characteristics
The periodic physical channel is characterized by a pseudo-random sequence of PHY channels and additional parameters provided by the advertiser. These are the channel map that indicates the set of PHY channels used in the periodic broadcast, the event counter used to determine the channel hopping sequence, the offset indicating the timing of the first periodic broadcast packet, and the interval between successive periodic broadcasts.
The channel is divided into periodic advertising events where the start of a periodic advertising event corresponds to a PHY hop channel. The start of consecutive periodic advertising events corresponds to different PHY hop channels. The first packet sent by the advertiser after the broadcast is established sets an anchor point for the timing of all future periodic advertising events.
On the periodic physical channel, the advertising device controls access to the physical channel. The advertiser starts its transmission in a periodic advertising event that occurs at regular intervals. Packets transmitted by the advertiser are aligned with the periodic advertising event and specified broadcast timing. Additional packets may also be transmitted between the periodic advertising events. The payload of packets sent by the advertiser may vary in length from 0 octets to 255 octets.
Each advertiser transmission contains a packet carrying information on the PADVB logical transports. Scanners cannot transmit on the physical channel.
There are 37 PHY channels. The advertiser can reduce this number through the channel map indicating the used channels. When the hopping pattern hits an unused channel, the unused channel is replaced with an alternate from the set of used channels. The periodic physical channel can use any PHY. All periodic advertising events use the same PHY used by the advertiser in the packet describing the characteristics of the periodic physical channel.
3.3.2.3.3. Topology
An LE periodic physical channel can be shared by any number of LE devices. Any number of LE devices can transmit periodic advertising packets while sharing the same periodic physical PHY channels. Any number of scanning devices can listen on the periodic physical channel. An advertising device can advertise and be synchronized on an LE periodic physical channel simultaneously. Scanning devices may also be synchronized to one or more LE periodic physical channels simultaneously.
3.3.2.4. LE Isochronous physical channel
The LE isochronous physical channel can be created to transfer isochronous data between LE devices.
3.3.2.4.1. Overview
The LE isochronous physical channel is used to transfer isochronous data between connected or unconnected LE devices.
3.3.2.4.2. Characteristics
The LE isochronous physical channel is characterized by a pseudo-random sequence of PHY channels and by three additional parameters that are provided by a Central or a connectionless broadcaster. The first parameter is the channel map that indicates the set of PHY channels. The second parameter is a pseudo random number that is used as an index into the complete set of PHY channels. The third parameter is the timing of the first data packet. The timing of the first packet of a CIS is provided in the Link Layer message that is sent in the associated ACL connection by the Central during the CIS establishment phase. The timing of the first packet of a BIS is referenced from a periodic advertising event associated with the BIS.
The LE isochronous physical channel is used to transfer isochronous data in isochronous events that occur at regular intervals. Each isochronous event is divided into one or more subevents. Each subevent uses a PHY channel that is selected by the channel selection algorithm.
In any subevent in an isochronous connection, the Central transmits a packet to the Peripheral and the Peripheral may respond with a packet of its own. The Central controls the access to the LE isochronous physical channel. In every CIS event, the Central starts its transmission at the start of the first subevent. Packets that are transmitted by the Central are time aligned with the start of every subevent.
A Broadcasting Isochronous transmitter transmits isochronous data packets and control packets. Any device that is synchronized to the BIS can receive these packets. The broadcasting device controls access to the LE isochronous physical channel. Within BIS events, the broadcasting device starts its transmission in the first subevent. Packets that are transmitted by the broadcasting device are aligned with the start of every subevent.
There are 37 PHY channels. The Central or the isochronous stream transmitter can reduce this number through the channel map that indicates the used channels. When the channel selection algorithm selects an unused channel, the unused channel is replaced with an alternate from the set of used channels. For CISes, the LE isochronous physical channel uses the set of PHY channels that are enabled on the LE piconet physical channel. The LE isochronous physical channel can use any LE PHY.
3.3.2.4.3. Topology
The LE isochronous physical channel in a CIS can be used for one-to-one communication between the devices that are in the LE piconet. The Central may establish one or more CISes with the Peripheral in the LE piconet; that is, the LE isochronous physical channel can carry one or more CIS logical transports between a given Central and Peripheral. The LE isochronous physical channel and all the CISes it carries are terminated when the associated LE piconet physical channel is terminated. If a Central has established piconets with more than one Peripheral, it can establish LE isochronous physical channels with more than one of these Peripherals at the same time.
The LE isochronous physical channel can be used for one-to-many communication topologies of unconnected LE devices. Each LE isochronous physical channel can carry one or more BIS logical transports.
3.3.2.5. LE Channel Sounding physical channel
The LE CS physical channel can be created to transfer time and phase information that can be used to generate a distance estimate.
3.3.2.5.1. Overview
An LE CS physical channel is used to exchange time-interleaved modulated tones and packets that allow a pair of devices to measure the time of flight, amplitude, and phase of signals sent over the communication channel. This information can be used to estimate the distance between two LE devices.
3.3.2.5.2. Characteristics
The LE CS physical channel is characterized by a pre-negotiated sequence of exchanges that make up a CS procedure. Characteristics and content of these exchanges is derived from the output of a Deterministic Random Bit Generator (DRBG). The DRBG is used to generate the content of the CS Access Address and payload content. It is also used to influence the modulated content of tone transmissions. Finally, the DRBG is used to seed the selection of the pseudo-random sequence of the PHY channels used in the channel hop sequence of a Channel Sounding procedure.
The duration of a CS procedure is determined by the time it takes for a predetermined number of CS steps to be exchanged. Additional time may be required to partition the CS steps into subevents in order to coexist with other activities using the same radio or spectrum.
CS steps are defined as a bidirectional exchange between initiator and reflector devices. These steps are further aggregated into a related timing group known as a CS subevent. These subevents are timed from an offset of the underlying LE piconet physical channel connection event anchor point. A CS event is defined as the group of all CS subevents offset from the same LE piconet physical channel connection event anchor point.
Each step exchange may include a modulated packet, a modulated tone, or both. The initiator device transmits first, followed by at least one transmission from the reflector. A modulated tone may be transmitted more than once in each direction in cases where multiple antenna paths are employed.
3.3.2.5.3. Topology
An LE Channel Sounding physical channel is used for one-to-one communication between two devices that are in the same piconet, where one is in the initiator role and the other is in the reflector role. In the context of CS, an initiator is the device that starts the CS procedure, and a reflector is the device that responds. The procedure’s operating parameters are exchanged in Link Layer control messages. LE CS physical channel timing depends on the timing of the initiator device, which is followed by the reflector device. The LE Central device may assume either the initiator or reflector role. Likewise, the LE Peripheral device may assume either role.
An LE device can use only one LE Channel Sounding physical channel at a time. To support multiple concurrent Channel Sounding operations, the device uses time-division multiplexing between multiple LE Channel Sounding physical channels, which allows a device to appear to support multiple connected devices with Channel Sounding physical channels.
3.3.3. [This section is no longer used]
3.4. Physical links
A physical link represents a baseband connection between Bluetooth devices. A physical link is always associated with exactly one physical channel (although a physical channel may support more than one physical link). Within the Bluetooth system a physical link is a virtual concept that has no direct representation within the structure of a transmitted packet.
In BR/EDR the access code packet field, together with the clock and address of the Central Bluetooth device, is used to identify a physical channel. In LE, the access address and channel map, including hopIncrement in the case of Channel Selection Algorithm #1 or an event counter in the case of Channel Selection Algorithm #2, are used to identify a physical channel. For BR/EDR and LE, there is no subsequent part of the packet that directly identifies the physical link. Instead, the physical link may be identified by association with the logical transport, as each logical transport is only received on one physical link.
Some physical link types have properties that may be modified. An example of this is the transmit power for the link. Other physical link types have no modifiable properties. In the case of BR/EDR physical links with modifiable properties the LM protocol is used to adapt these properties. In the case of LE physical links with modifiable properties the LL protocol is used to adapt these properties. As the LM protocol (BR/EDR) or LL protocol (LE) is supported at a higher layer (by a logical link) the appropriate physical link is identified by implication from the logical link that transports the LM or LL signaling.
In the situation where a transmission is broadcast over a number of different physical links, then the transmission parameters are selected to be suitable for all of the physical links.
3.4.1. BR/EDR links supported by the basic and adapted piconet physical channels
The basic piconet physical channel supports a physical link which may only be active. The adapted piconet physical channel may support several physical links, including active and Connectionless Peripheral Broadcast. An active physical link is a point-to-point link between the Central and a Peripheral. A Connectionless Peripheral Broadcast physical link is a point-to-multipoint link between the Transmitter (Central) and zero or more Receivers (Peripherals). At least one physical link on the piconet physical channel is always present when a Peripheral is synchronized in the piconet.
3.4.1.1. Active physical link
The physical link between a Central and a Peripheral is active if a default ACL logical transport exists between the devices. Active physical links have no direct identification of their own, but are identified by association with the default ACL logical transport ID with which there is a one-to-one correspondence.
An active physical link has the associated property of radio transmit power in each direction. Transmissions from Peripherals are always directed over the active physical link to the Central, and use the transmit power that is a property of this link in the Peripheral to Central direction. Transmissions from the Central may be directed over a single active physical link (to a specific Peripheral) or over a number of physical links (to a group of Peripherals in the piconet). In the case of point-to-point transmissions the Central uses the appropriate transmit power for the physical link in question. (In the case of point-to-multipoint transmissions the Central uses a transmit power appropriate for the set of devices addressed.)
Active physical links may be placed into Hold or Sniff mode. The effect of these modes is to modify the periods when the physical link is active and may carry traffic. Logical transports that have defined scheduling characteristics are not affected by these modes and continue according to their pre-defined scheduling behavior. The default ACL logical transport and other links with undefined scheduling characteristics are subject to the mode of the active physical link.
3.4.1.2. [This section is no longer used]
3.4.1.3. Connectionless Peripheral Broadcast physical link
A Connectionless Peripheral Broadcast physical link is present on a Receiver (Peripheral) when it is synchronized in the piconet where a CPB logical transport exists. On a Transmitter (Central), a Connectionless Peripheral Broadcast physical link is present when a CPB logical transport exists whether or not any Receivers are synchronized. The Connectionless Peripheral Broadcast physical link is a point-to-multipoint unidirectional link between a Transmitter and zero or more Receivers.
Connectionless Peripheral Broadcast physical links do not support power control because there is no feedback from Receivers to the Transmitter. Traffic is always directed from a single Transmitter to zero or more Receivers.
Connectionless Peripheral Broadcast packets are sent at regular intervals. The BR/EDR Controller selects an interval within a range requested by the Host.
3.4.2. BR/EDR links supported by the scanning physical channels
In the case of inquiry scan and page scan channels, the physical link exists for a relatively short time and cannot be controlled or modified in any way. These types of physical links are not further elaborated.
3.4.3. LE links supported by the LE physical channels
The LE piconet physical channels support an LE active physical link. The physical link is a point-to-point link between the Central and a Peripheral. It is always present when the Peripheral is in a connection with the Central.
The LE advertising physical channels support an LE advertising physical link. The physical link is a broadcast between the advertiser device and one or more scanner or initiator devices. It is always present when the advertiser is broadcasting advertisement events.
The LE periodic physical channels support an LE periodic physical link. The physical link is a broadcast between the advertiser device and one or more scanner devices. It is always present when the advertiser is broadcasting periodic advertising events.
The LE isochronous physical channels support LE isochronous physical links. An LE isochronous physical link can be a point-to-point link between a Central and a Peripheral or a connectionless link between a broadcast isochronous transmitter and multiple receiving devices.
3.4.3.1. Active physical link
The physical link between a Central and a Peripheral is active if a default LE ACL logical transport exists between the devices. Active physical links are each associated with a separate piconet physical channel, which in turn is identified by the randomly generated Access Address used in the Link Layer packet. Each Access Address has a one-to-one relationship with the Central and the Peripheral of the active physical link.
An active physical link has the associated property of radio transmit power in each direction, which may be different in each direction. A device uses the appropriate transmit power for the physical link in question.
3.4.3.2. Advertising physical link
An advertising physical link between an advertising device and an initiating device for the purposes of forming a connection (active physical link) can exist for a relatively short period of time. These advertising physical links cannot be controlled or modified in any way and these types of physical links are not further elaborated.
An advertising physical link between an advertising device and a scanning device used for periodic broadcasting of user data can exist for longer periods of time. There is no identification information about the physical link within the protocol. The relationship between the advertising and scanning device is established through the use of the Bluetooth Device Address.
3.4.3.3. Periodic physical link
A periodic physical link between an advertising device and one or more scanning devices normally exists for a prolonged period of time. Periodic physical links are each associated with a separate periodic physical channel, which in turn is identified by the randomly generated Access Address used in the Link Layer packet. Each Access Address has a one-to-one relationship with the advertiser of the periodic physical link.
3.4.3.4. Isochronous physical links
The isochronous physical link uses an isochronous physical channel and carries CIS and BIS logical transports.
Isochronous physical links carrying CIS(es) use the appropriate transmit power level for the physical link in question. Devices use power control on the associated ACL-C logical link to adapt the transmit power level for the physical link.
Isochronous physical links carrying BIS(es) do not support power control because there is no feedback from Observers to the Broadcaster. Traffic is always directed from a single Broadcaster to zero or more Observers.
3.4.3.5. Channel Sounding physical link
Channel Sounding procedures exist within an LE Channel Sounding physical link and are characterized by their transitory existence as well as their unique timing characteristics relative to an LE active physical link. Channel Sounding procedures are based on a preexisting LE active physical link. A CS procedure’s start timing is also dependent on the timing of the corresponding LE active physical link.
A Channel Sounding physical channel supports a Channel Sounding physical link.
3.4.4. [This section is no longer used]
3.5. Logical links and logical transports
A variety of logical links are available to support different application data transport requirements. Each logical link is associated with a logical transport, which has a number of characteristics. These characteristics include flow control, acknowledgment/repeat mechanisms, sequence numbering and scheduling behavior. Logical transports are able to carry different types of logical links (depending on the type of the logical transport). In the case of some of the Bluetooth logical links these are multiplexed onto the same logical transport. Logical transports may be carried by active physical links on either the basic or the adapted piconet physical channel.
Logical transport identification and real-time (link control) signaling are carried in the packet header, and for some logical links identification is carried in the payload header. Control signaling that does not require single slot response times is carried out using the LMP protocol.
Table 3.4 lists all of the logical transport types, the supported logical link types, which type of physical links and physical channels can support them, and a brief description of the purpose of the logical transport.
Logical transport | Links supported | Supported by | Bearer | Overview |
|---|---|---|---|---|
Asynchronous Connection-Oriented (ACL) | Control (LMP) ACL‑C User (L2CAP) ACL‑U | BR/EDR active physical link, BR/EDR basic or adapted piconet physical channel | BR/EDR | Reliable or time-bounded, bi-directional, point-to-point |
Synchronous Connection-Oriented (SCO) | Stream (unframed) SCO-S | BR/EDR active physical link, BR/EDR basic or adapted piconet physical channel | BR/EDR | Bi-directional, symmetric, point-to-point, AV channels. Used for 64 kb/s constant rate data. |
Extended Synchronous Connection-Oriented (eSCO) | Stream (unframed) eSCO-S | BR/EDR active physical link, BR/EDR basic or adapted piconet physical channel | BR/EDR | Bi-directional, symmetric or asymmetric, point-to-point, general regular data, limited retransmission. Used for constant rate data synchronized to the Central’s clock. |
Active Peripheral Broadcast (APB) | Control (LMP) APB‑C User (L2CAP) APB‑U | BR/EDR active physical link, basic or adapted physical channel | BR/EDR | Unreliable, uni-directional broadcast to any devices synchronized with the physical channel. Used for broadcast L2CAP groups and certain LMP messages. |
Connectionless Peripheral Broadcast (CPB) | Profile Broadcast Data (PBD) | Connectionless Peripheral Broadcast physical link, BR/EDR adapted piconet physical channel | BR/EDR | Unreliable, unidirectional, point-to-multipoint, periodic transmissions to zero or more devices. |
LE asynchronous connection (LE ACL | Control (LL) LE‑C, User (L2CAP) LE‑U | LE active physical link, LE piconet physical channel | LE | Reliable, bi-directional, point-to-point. |
LE Advertising Broadcast (ADVB) | Control (LL) ADVB‑C, User (LL) ADVB‑U | LE advertising physical link, LE advertising physical channel | LE | Unreliable, uni-directional broadcast to all devices in a given area or directed to one recipient. Used to carry data and Link Layer signaling between unconnected devices. |
LE Periodic Advertising Broadcast (PADVB) | Control (LL) ADVB‑C, User (LL) ADVB‑U | LE periodic physical link, LE periodic physical channel | LE | Unreliable, periodic, unidirectional broadcast to all devices in a given area. |
Periodic Advertising with Responses (PAwR) | Control (LL) ADVB-C, User (LL) ADVB-U | LE periodic physical link, LE periodic physical channel | LE | Unreliable, periodic broadcast to all devices or a subset of devices in a given area with optional responses from the devices. |
Connected Isochronous Stream | Low Energy Stream (LE‑S) and Low Energy Framed data (LE‑F) | LE isochronous physical link | LE | Unidirectional or bidirectional transport in a point-to-point connection for transferring isochronous data. |
Broadcast Isochronous Stream | Low Energy Stream (LE‑S), Low Energy Framed data (LE‑F) and Low Energy Broadcast Control (LEB‑C) | LE isochronous physical link | LE | Unidirectional transport for broadcasting data in a point to multipoint configuration and unidirectional transport for controlling the broadcast data. |
The classification of each link type follows from a selection procedure within three categories.
3.5.1. Casting
The first category is that of casting. This may be either unicast or broadcast.
Unicast links exist between exactly two endpoints. Traffic may be sent in either direction on unicast links.
Broadcast links exist between one source device and zero or more receiver devices. Traffic is unidirectional, i e., only sent from the source devices to the receiver devices. Broadcast links are connectionless, meaning there is no procedure to create these links, and data may be sent over them at any time. Broadcast links are unreliable, and there is no guarantee that the data will be received.
3.5.2. Scheduling and acknowledgment scheme
The second category relates to the scheduling and acknowledgment scheme of the link, and implies the type of traffic that is supported by the link. These are synchronous, isochronous or asynchronous. There are no specific isochronous links defined, though the default ACL link can be configured to operate in this fashion.
Synchronous links provide a method of associating the transported data with the Bluetooth piconet clock. This is achieved by reserving regular slots on the physical channel, and transmitting fixed size packets at these regular intervals. Such links are suitable for constant rate isochronous data.
Asynchronous links provide a method for transporting data that has no time-based characteristics. The data is normally expected to be retransmitted until successfully received, and each data entity can be processed at any time after receipt, without reference to the time of receipt of any previous or successive entity in the stream (providing the ordering of data entities is preserved).
Isochronous links provide a method for transporting data that has time-based characteristics. The data may be retransmitted until received or expired. The data rate on the link need not be constant (this being the main difference from synchronous links).
3.5.3. Class of data
The final category is related to the class of data that is carried by the link. This is either control data or user data. The user data category is sub-divided into L2CAP data, stream data, and periodic broadcast data.
Control links are only used for transporting LMP or Link Layer messages between two Controllers. These links are invisible above the baseband layer or Link Layer and cannot be directly instantiated, configured, or released by applications, other than by the use of the services, such as connection and disconnection, that have this effect implicitly. Control links are always multiplexed with an equivalent L2CAP data link onto a logical transport. For example, ACL-C and ACL-U are multiplexed onto an ACL logical transport, whereas ADVB-C and ADVB-U are multiplexed onto ADVB and PADVB logical transports. Subject to the rules defining the acknowledgment scheme, the control link traffic normally takes priority over the L2CAP link traffic.
L2CAP links are used to transport L2CAP PDUs, which may carry the L2CAP signaling channel or framed user data submitted to user-instantiated L2CAP channels. L2CAP frames submitted to the baseband may be larger than the available Baseband packets. A link control protocol embedded within the LLID field preserves the frame-start and frame-continuation semantics when the frame is transmitted in a number of fragments to the receiver. Normally, L2CAP links give reliable delivery of data priority over timely delivery.
Stream links are used to transport user data when timely delivery of the latest data has priority over reliability. Lost data may be replaced by padding at the receiver. On BR/EDR, these links (SCO and eSCO) have a fixed bandwidth and are always bidirectional between two devices; on LE, they have a variable bandwidth with a specified maximum and may be either bidirectional between two devices (CIS) or unidirectional broadcast (BIS).
Periodic broadcast data is transmitted at regular intervals, possibly with jitter, by a device. It has no acknowledgment mechanism. The same data is transmitted until it is explicitly changed. This is sent on the PBD logical link on BR/EDR and on the ADVB-U logical link on LE.
3.5.4. Logical transports
3.5.4.1. BR/EDR asynchronous connection-oriented (ACL)
The asynchronous connection-oriented (ACL) logical transport is used to carry LMP and L2CAP control signaling and best effort asynchronous user data. The ACL logical transport uses a 1-bit ARQN/SEQN scheme to provide simple channel reliability. Every active Peripheral within a piconet has one ACL logical transport to the piconet Central, known as the default ACL.
The default ACL is created between the Central and the Peripheral when a device joins a piconet (connects to the basic piconet physical channel). This default ACL is assigned a logical transport address (LT_ADDR) by the piconet Central. This LT_ADDR is also used to identify the active physical link when required (or as a piconet active member identifier, effectively for the same purpose).
The LT_ADDR for the default ACL is reused for synchronous connection-oriented logical transports between the same Central and Peripheral. Thus the LT_ADDR is not sufficient on its own to identify the default ACL. However the packet types used on the ACL are different from those used on the synchronous connection-oriented logical transport. Therefore, the ACL logical transport can be identified by the LT_ADDR field in the packet header in combination with the packet type field.
The default ACL may be used for isochronous data transport by configuring it to automatically flush packets after the packets have expired. Asynchronous traffic can be sent over an ACL logical transport configured for isochronous traffic by marking the asynchronous packets as non-automatically-flushable. This allows both isochronous and asynchronous traffic to be transferred at the same time to a single device.
If the default ACL is removed from the active physical link then all other logical transports that exist between the Central and the Peripheral are also removed. In the case of unexpected loss of synchronization to the piconet physical channel the physical link and all logical transports and logical links cease to exist at the time that this synchronization loss is detected.
3.5.4.2. BR/EDR synchronous connection-oriented (SCO)
The synchronous connection-oriented (SCO) logical transport is a symmetric, point-to-point transport between the Central and a specific Peripheral. The SCO logical transport reserves slots on the physical channel and can therefore be considered as a circuit-switched connection between the Central and the Peripheral. SCO logical transports carry 64 kb/s of information synchronized with the piconet clock. Typically this information is an encoded voice stream. Three different SCO configurations exist, offering a balance between robustness, delay and bandwidth consumption.
Each SCO-S logical link is supported by a single SCO logical transport, which is assigned the same LT_ADDR as the default ACL logical transport between the devices. Therefore the LT_ADDR field is not sufficient to identify the destination of a received packet. Because the SCO links use reserved slots, a device uses a combination of the LT_ADDR, the slot numbers (a property of the physical channel) and the packet type to identify transmissions on the SCO link.
Although slots are reserved for the SCO, it is permissible to use a reserved slot for traffic from another channel that has a higher priority. This may be required as a result of QoS commitments, or to send LMP signaling on the default ACL when the physical channel bandwidth is fully occupied by SCOs. As SCOs carry different packet types to ACLs, the packet type is used to identify SCO traffic (in addition to the slot number and LT_ADDR).
There are no further architectural layers defined by the specification that are transported over a SCO link. A number of standard formats are defined for the 64 kb/s stream that is transported, or an unformatted stream is allowed where the application is responsible for interpreting the encoding of the stream.
3.5.4.3. BR/EDR extended synchronous connection-oriented (eSCO)
The extended synchronous connection-oriented (eSCO) logical transport is a symmetric or asymmetric, point-to-point transport between the Central and a specific Peripheral. The eSCO reserves slots on the physical channel and can therefore be considered as a circuit-switched connection between the Central and the Peripheral. eSCO links offer a number of extensions over the standard SCO links, in that they support a more flexible combination of packet types and selectable data contents in the packets and selectable slot periods, allowing a range of synchronous bit rates to be supported.
eSCO links also can offer limited retransmission of packets (unlike SCO links where there is no retransmission). If these retransmissions are required they take place in the slots that follow the reserved slots, otherwise the slots may be used for other traffic.
Each eSCO-S logical link is supported by a single eSCO logical transport, identified by a LT_ADDR that is unique within the piconet for the duration of the eSCO. eSCO-S links are created using LM signaling and follow scheduling rules similar to SCO-S links.
There are no further architectural layers defined by the specification that are transported over an eSCO-S link. Instead applications may use the data stream for whatever purpose they require, subject to the transport characteristics of the stream being suitable for the data being transported.
3.5.4.4. BR/EDR active Peripheral broadcast (APB)
The active Peripheral broadcast logical transport is used to transport LMP control signaling and connectionless L2CAP user traffic to all devices in the piconet that are currently connected to the physical channel that is used by the APB. There is no acknowledgment protocol and the traffic is uni-directional from the piconet Central to the Peripherals. The APB channel may be used for L2CAP group traffic (a legacy of the 1.1 specification), and is never used for L2CAP connection-oriented channels or L2CAP control signaling.
The APB logical transport is inherently unreliable because of the lack of acknowledgment. To improve the reliability, each packet is transmitted a number of times. An identical sequence number is used to assist with filtering retransmissions at the Peripheral.
The APB logical transport is identified by a reserved LT_ADDR.
An APB is implicitly created whenever a piconet exists, and there is always one APB associated with each of the active physical links (whether operating over the basic or adapted piconet physical channel) that exist within the piconet. Because the basic and adapted piconet physical channels, and different channel maps on the adapted piconet physical channel, are mostly coincident, a Peripheral cannot always distinguish which of the APB channels is being used to transmit the packets. This adds to the general unreliability of the APB channel. (Although it is, perhaps, no more unreliable than general missed packets.)
A Central may decide to use only one of its two possible APBs (when it has both a basic and adapted piconet physical channel), or only one of the channel maps in use on the adapted piconet physical channel (when it has more than one map), as with sufficient retransmissions or careful selection of which slots to transmit on it is possible to address all Peripherals.
The APB channel is never used to carry L2CAP control signals.
3.5.4.5. [This section is no longer used]
3.5.4.6. LE asynchronous connection (LE ACL)
The LE asynchronous connection (LE ACL) logical transport is used to carry LL and L2CAP control signaling and best effort asynchronous user data. The LE ACL logical transport uses a 1-bit NESN/SN scheme to provide simple channel reliability. Every active Peripheral has one LE ACL logical transport to the piconet Central, known as the default LE ACL.
The default LE ACL is automatically created between the Central and the Peripheral when the piconet connecting them is created. This default LE ACL is assigned an Access Address by the piconet Central. This Access Address is also used to identify the active physical link and active piconet physical channel when required.
If the default LE ACL is removed from the LE active physical link then all other LE logical transports that exist between the Central and the Peripheral are also removed. In the case of unexpected loss of synchronization to the LE piconet physical channel the LE physical link and all LE logical transports and LE logical links cease to exist at the time that this synchronization loss is detected.
3.5.4.7. LE advertising broadcast (ADVB)
The LE advertising broadcast logical transport is used to transport broadcast control and user data to all scanning devices in a given area. There is no acknowledgment protocol and the traffic is predominately unidirectional from the advertising device. A scanning device can send requests over the logical transport to get additional broadcast user data, or to form an LE ACL logical transport connection. The LE Advertising Broadcast logical transport data is carried only over the LE advertising broadcast link.
The ADVB logical transport is inherently unreliable because of the lack of acknowledgment. To improve the reliability, each packet is transmitted a number of times over the LE advertising broadcast link.
An ADVB is created whenever an advertising device begins advertising. The ADVB logical transport is identified by the advertiser's Bluetooth Device Address and advertising set.
3.5.4.8. Connectionless Peripheral Broadcast (CPB)
The CPB logical transport is used to transport profile broadcast data to all devices connected to the Connectionless Peripheral Broadcast logical transport. There is no acknowledgment scheme and the traffic is unidirectional from a Transmitter to zero or more Receivers. To improve reliability, profile broadcast data may be transmitted multiple times.
The CPB logical transport is created on the transmitter whenever the Connectionless Peripheral Broadcast is started. The CPB logical transport is created on the receiver whenever Connectionless Peripheral Broadcast reception is configured. The CPB logical transport is identified by a unique LT_ADDR within the piconet that is reserved specifically for that purpose by the Connectionless Peripheral Broadcast Transmitter.
3.5.4.9. LE periodic advertising
3.5.4.9.1. LE periodic advertising broadcast (PADVB)
The LE periodic advertising broadcast logical transport is used to transport periodic broadcast control and user data to all scanning devices in a given area. The data may be constant for several periods or may change frequently. There is no acknowledgment protocol and the traffic is unidirectional from the advertising device. The LE Periodic Advertising Broadcast logical transport data is carried only over the LE periodic physical link.
The PADVB logical transport is inherently unreliable because of the lack of acknowledgment. To improve the reliability, the period between transmissions can be shorter than the interval between changes to the data so that each packet can be transmitted a number of times over the LE periodic physical link.
A PADVB is created whenever an advertising device begins periodic advertising. The PADVB logical transport is identified by the advertiser's Bluetooth Device Address, timing, and advertising set.
3.5.4.9.2. Periodic advertising with responses (PAwR)
The LE periodic advertising with responses logical transport is used to transport periodic broadcast control and user data to all scanning devices in a given area. These broadcasts are grouped into subevents, allowing a subset of the devices to be synchronized with each subevent. Each subevent can then contain information that is directed to the subset of devices synchronized to that subevent. This allows the broadcasting device to send data to many devices and the synchronized devices to only have to listen very infrequently for information directed to them. The data may be constant for several periods or may change frequently. The PAwR logical transport data is carried only over the LE periodic physical link.
The PAwR logical transport also includes response slots. The devices that have been directly addressed by the advertising device use response slots to send back responses. A higher layer specification determines the set of devices that can respond and when they respond. The PAwR logical transport is inherently unreliable, but the ability to use response slots allows higher layer acknowledgments to be used to provide reliability.
A PAwR logical transport is created whenever an advertising device begins periodic advertising configured to use subevents and responses. The PAwR logical transport is identified by the advertiser's Bluetooth Device Address, timing, and advertising set.
3.5.4.10. Connected Isochronous Stream (CIS)
The CIS is a data-symmetric or data-asymmetric, point-to-point logical transport between the Central and a specific Peripheral. A CIS reserves transmission/reception (Tx/Rx) periods, known as subevents, on the isochronous physical channel and can be considered as a circuit switched connection between the Central and the Peripheral. The CIS supports a variable flushing period for payloads, variable size data contents in the packets, and a variable number of subevents, allowing a range of isochronous data rates, latencies, and re-transmissions to be supported. A CIS can be configured to retransmit packets by providing more subevents than required for transmitting the data. If retransmissions are required, they take place in the subevents (of the current or subsequent events) that follow.
Each LE-S or LE-F logical link is supported by a single CIS that is identified by a unique access address for the lifetime of the CIS. The LE-S or LE F links are created by using Link Layer procedures. The higher layer may use the data stream for whatever purpose it requires, as long as the transport characteristics of the stream are suitable for the data that is being transported. All isochronous connections are terminated when the associated LE piconet physical channel is terminated.
3.5.4.11. Connected Isochronous Group (CIG)
Each CIS is part of a CIG. A CIG may have one or more CISes, all with the same Central but possibly different Peripherals. Multiple CISes in a CIG have a common timing reference based on the Central timing and are synchronized in time. The common timing reference of multiple CISes helps devices to synchronize their input or output data. For example, when the left and right channels of an audio stereo stream, which are received by separate devices, need to be rendered at the same time. Multiple CISes in a CIG can be scheduled sequentially or in an interleaved arrangement.
3.5.4.12. Broadcast Isochronous Stream (BIS)
The BIS logical transport is used to transport one or more isochronous data streams to all devices for a BIS within range. The data may be fixed or variable size, framed or unframed. A BIS has one or more subevents for transmitting isochronous data packets. A BIS supports transmission of multiple new isochronous data packets in every BIS event. There is no acknowledgment protocol and the traffic is unidirectional from the broadcasting device. The BIS logical transport is inherently unreliable because of the lack of acknowledgment. To improve the reliability of delivery, the isochronous data packets can be unconditionally re-transmitted by increasing the number of subevents in every event. The reliability of delivery can also be improved by transmitting packets in intervals earlier than the intervals they are associated with; this is called "pre-transmission". A BIS supports LE-S or LE-F logical links. A BIS is identified by a unique access address and the timing information. The access address and the timing information is transmitted in the packet that is sent using the associated Periodic Advertising Broadcast (PADVB) logical transport. A scanning device that supports the Synchronized Receiver role feature may receive isochronous data from a BIS after synchronizing to the BIS by using the timing information from the periodic advertising train.
3.5.4.13. Broadcast Isochronous Group (BIG)
Each BIS is part of a BIG. A BIG may have one or more BISes. Multiple BISes in a BIG have a common timing reference based on the broadcaster and are synchronized in time. For example, when the left and right channels of an audio stereo stream, which are received by separate devices, need to be rendered at the same time. Multiple BISes in a BIG can be scheduled sequentially or in
